• OLA20 Round Linear Light

OLA20 Round Linear Light

Short Description:

The ring LED light OLA20SL60 is a slim and stylish lighting solution.

It has a 600mm diameter and a sleek profile of 20mm and silicone lens.

CCT from 2200k to 6500k, no flickering effects, color rendering indexes in the CRI> 80, or CRI>90 on request, dimmable or non-dimmable are the main characteristics.


Product Detail

Download

Product Tags

Product Introduction

Due to its innovative features, stylish design, high quality of its components, the circular light ring gives wider, more uniform illumination and offers exceptional performance, functionally and aesthetically.

Featuring a high Color Rendering Index (CRI) of 90 or 80, it ensures accurate and vibrant color representation.

People can choose the right color temperature from 2200~6500k, offer customizable lighting options for different settings.

This round circle light can be non-dimmable, 0~10v dimmable, or Dali dimmable for different lighting requirements.

During the sus-pendant installation, the LED drivers, which are responsible for regulating and supplying power to the circular led lights, are strategically positioned within the ceiling canopy. This placement not only allows for increased space and airflow for the drivers, ensuring optimal performance and longevity, but also contributes to a seamless and streamlined appearance of the overall installation.

In its family named OLA series, a bendable lighting system, there are other members with different diameters and shapes available.

OLA20

Feature

1, Curved corners give the luminaires a more sophisticated and stylish design: This design element adds a touch of elegance and sophistication to the overall aesthetic of the lighting fixtures.

2, Silicon lens, softens the light glaring to people's eyes: The circular Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

3, High-quality components, 5-year warranty: The ring LED light fixtures are built using high-quality components, ensuring their durability and long lifespan.

4, CRI80 or CRI90 for selection: With the choice between CRI80 or CRI90, users can select the level of color accuracy and vibrancy they desire for their specific lighting needs.

5, 3000k, 4000k, 6000k for choice: Users can choose from different color temperatures such as 3000K, 4000K, and 6000K, offering warm, neutral, or cool lighting options.

6, Tunable white is available: allowing users to adjust the color temperature according to their specific preferences or changing lighting needs.

7, Models with diameter of 450mm, 900mm, 1200mm for choice: The LED light fixtures are available in multiple sizes to accommodate different spaces and lighting requirements.

8, Pendant installation with drivers hidden in the ceiling canopy: This setting makes the operation or maintenance easier, also gives the space more comfort.

OLA-Ring Series

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (10)

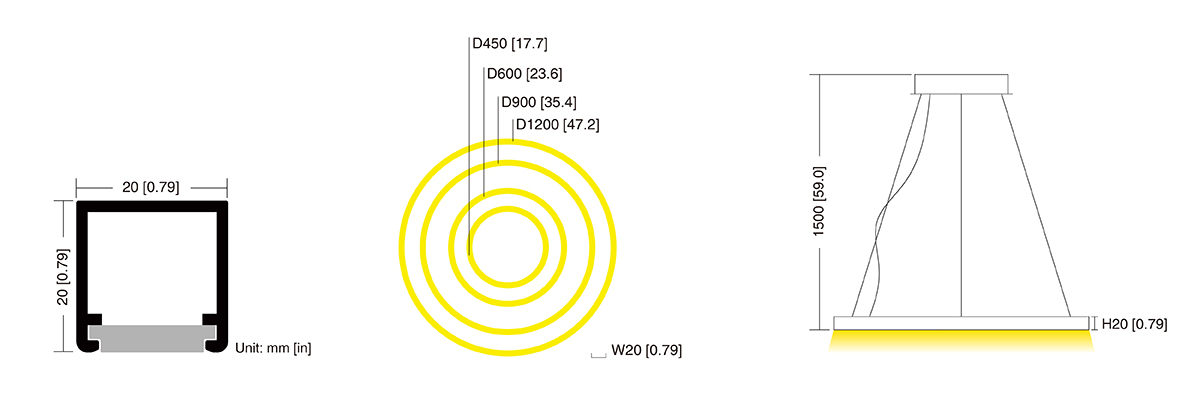

Dimension

OLA20-DIMENSION_

Specification

Model OLA20 Input Vol. 220-240VAC
LED Bridgelux LENS Silicone
Beam Angle 110Deg CCT 2700K, 3000K, 4000K
Installation Pendant CRI 80+, 90+
Dimension Φ450mm, Φ600mm, Φ900mm, Φ1200mm Color Quality 3-step MacAdam
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
DIM G1-On/Off
G2-0-10V
G3-DALI

Installation Methods

OLA-installation

Range of Applications

Mainly used in offices, conference rooms, educational institutions, other commercial buildings, and government buildings.

OLA-applications
