• OLA30FY Square Linear Light

OLA30FY Square Linear Light

Short Description:

OLA30FY is a model from BV Inspiration’s bendable lighting system.

It features a lighting surface width of 30mm and a profile height of 30mm, with various options of the width*length, including 450mm, 600mm, 900mm, 1200mm.

This square linear light can be controlled using different systems, including ON/OFF, 0-10V dimming, and DALI dimming.

With CRI80 or CRI90, CCT from 2200k to 6500k, this slim circular light offers uniform illumination and can enhance the aesthetics of any space.


Product Detail

Download

Product Tags

Product Introduction

This square led light offers a wide range of housing color options to match any aesthetic or branding requirement including classic colors like white, black, and silver, or we can provide tailored colors to perfectly complement your space.

It gives you the choice between high-quality CRI 80 or CRI 90, ensuring that the colors and textures in your space are faithfully depicted.

With a CCT range of 2200k to 6500k, you can select the ideal color temperature to create the desired atmosphere.

Additionally, the tunable white options allow you to adjust the color temperature according to your specific needs.

Whether you prefer the simplicity of ON/OFF, the flexibility of 0-10V, or the advanced control of Dali, these rings led lights have got you covered, help you to create the perfect ambience with ease.

This Led square offers multiple diameter choices, including450mm, 600mm, 900mm, 1000mm, or bigger, depending on the desired lighting effect and the scale of your space.

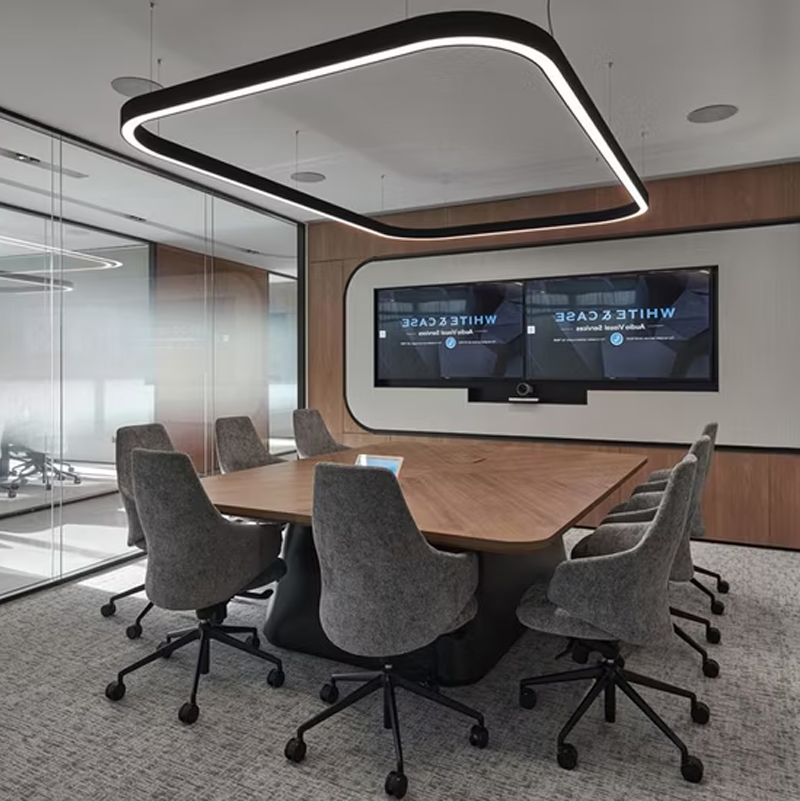

OLA20FY-features

Feature

1, Finish Color options: You can choose from standard housing colors like white, black, and silver, or we can provide tailored colors if necessary.

2, Silicon lens, softens the light glaring to people's eyes: The circular Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

3,CCT (Correlated Color Temperature): This ring lighting system offers a wide CCT range of 2200k to 6500k, allowing you to select the perfect color temperature for your space.

Meanwhile, option for tunable white, enables you to adjust the color temperature as you need.

4,CRI (Color Rendering Index): choose between CRI 80 or CRI 90, ensuring high-quality light output that accurately represents the colors and textures in your environment.

5, Dimming Options: versatile dimming options including ON/OFF, 0-10V, and Dali.

This ensures you have precise control over the light intensity for creating the desired atmosphere.

6,Multiple Diameter Choices: We offer a variety of diameter options to cater to different lighting requirements.

7, Customizable Shapes: Whether you require linear fixtures, square panels, circular luminaires, or any other specific shape, we can accommodate your needs.

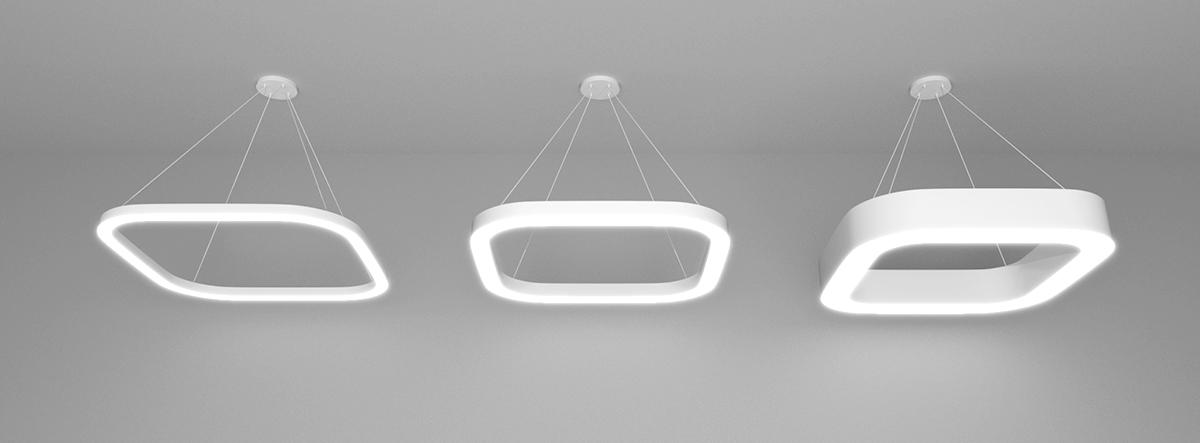

OLA-Square Series

OLA-square-linear-light

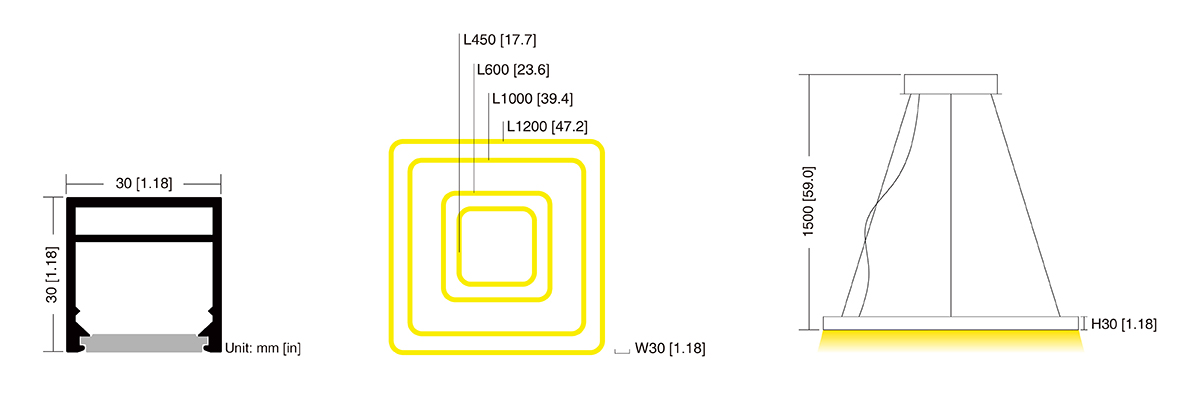

Dimension

OLA30FY-dimension

Specification

Model OLA30FY Input Vol. 220-240VAC
LED Bridgelux LENS Silicone
Beam Angle 110Deg CCT 2700K, 3000K, 4000K
Installation Pendant CRI 80+, 90+
Dimension L450 x W450 x H30mm
L600 x W600 x H30mm
L1000 x W1000 x H30mm
L1200 x W1200 x H30mm
Color Quality 3-step MacAdam
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
DIM G1-On/Off
G2-0-10V
G3-DALI

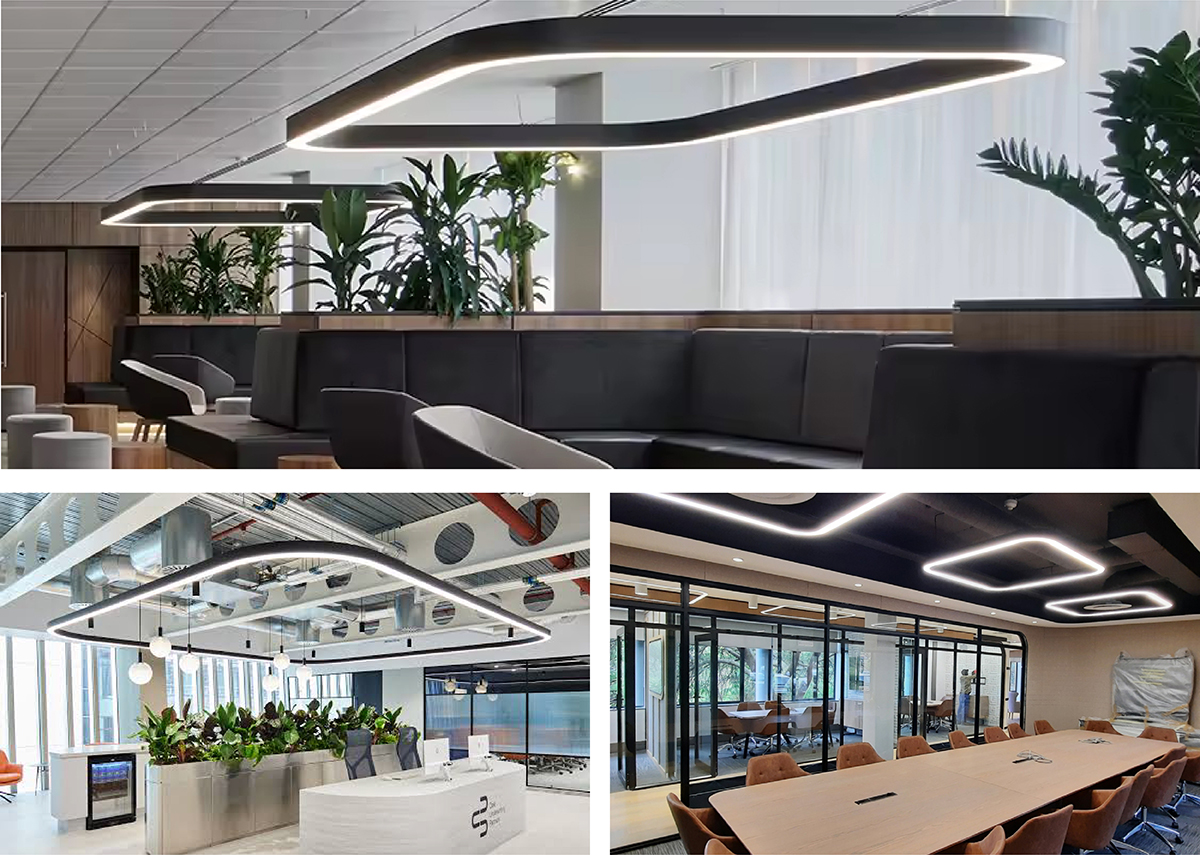

Range of Applications

Mainly used in offices, conference rooms, educational institutions, other commercial buildings, and government buildings.

OLA-square-linear-light-applications
