LUZ SERIES
LINEAR LIGHT

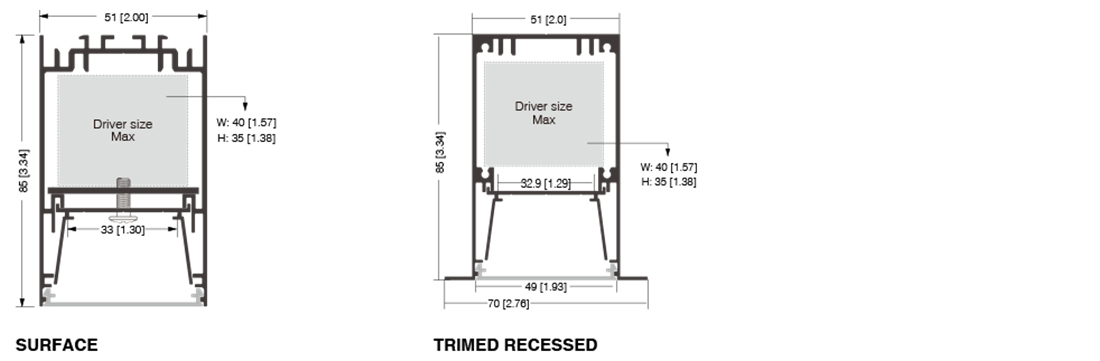

• Elegant design with internal driver by size in W50xH85mm.

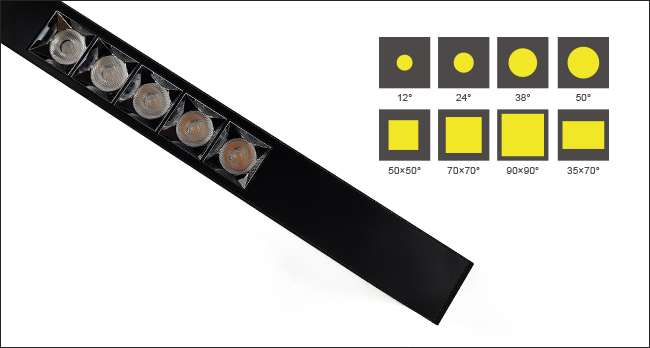

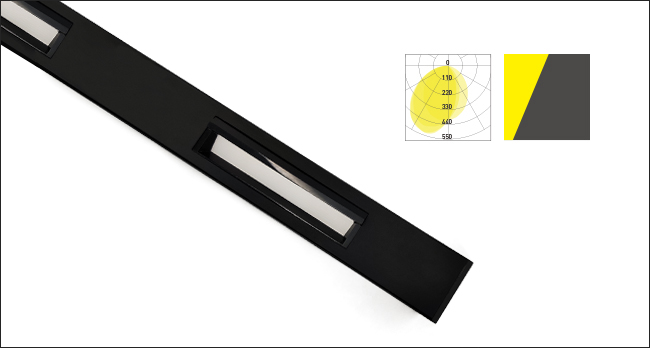

• More optical options in PC lens, 15° / 30° / 45° / 50° / 50x50° / 35x75° louver or TRI lens, extruded lens in Asymmetric, Batwing, 60°, 90°, plus the Wall washer.
• More lighting options in 95+ or 80+ Ra, white color from 2200K to 6500K.
• More dimming/controlling options by Dali, 0/1-10V, DMX, PWM, 2.4G Static, Tunable white, Dim to warm, RGBW.

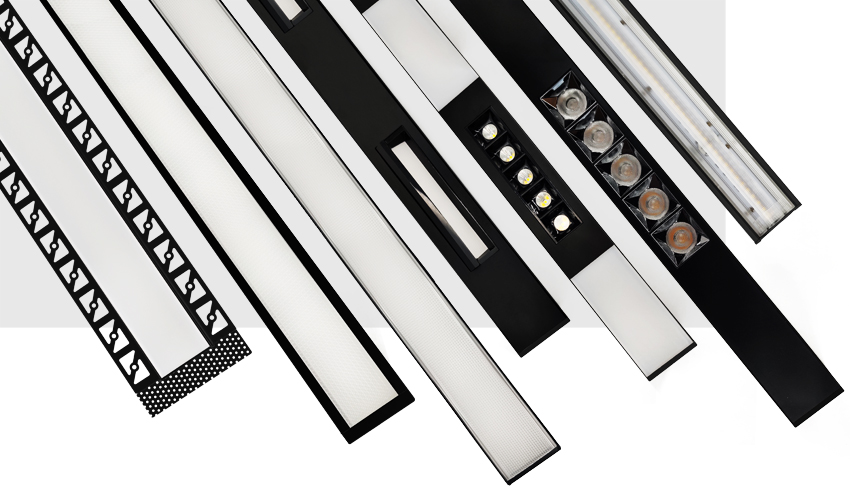

• Multi-installation in Trimless Recessed, Trimed Recessed, Sus-pendant, Ceiling Mounted, and wall Mounted.
![LUZ](http://www.bvinspiration.com/uploads/LUZ.jpg)
![LUZ (2)](http://www.bvinspiration.com/uploads/LUZ-2.jpg)
![LUZ (3)](http://www.bvinspiration.com/uploads/LUZ-3.jpg)
LUZ with
PC & Anti-Glaring
Optical Kit

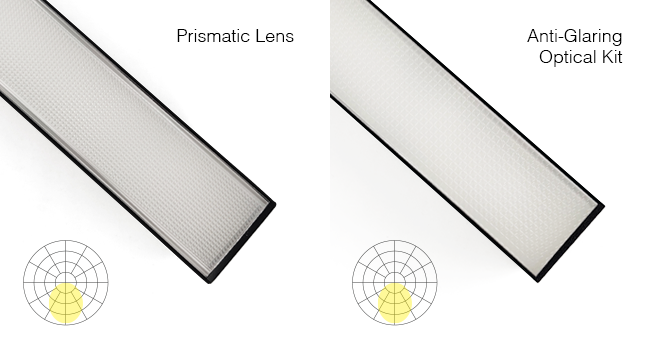

General PC lens with high transmission.
Prismatic Lens available for anti-glaring lighting requirements.
Made in US anti-glaring optical kit available as well.
![LUZ (5)](http://www.bvinspiration.com/uploads/LUZ-5.jpg)
LUZ with Square
Louver & Wall Washer

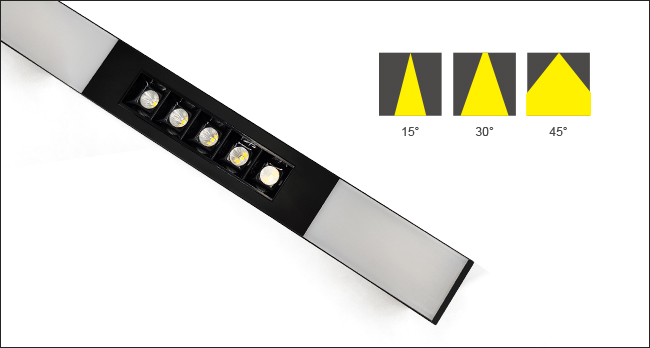

5in1 flexible louver set.
Any length flexible as multiple of L132.5mm-W30mm or L189.8mm-W38mm.
Available in 15°, 30°,45°, Asymmetric wall washer beam angles.
Anti-glaring in UGR<12
![LUZ2](http://www.bvinspiration.com/uploads/LUZ2.jpg)
![luz](http://www.bvinspiration.com/uploads/luz.jpg)
MORE lIGHT SOURCE & DRIVER OPTIONS.
Lumen output on light source from 100lm/w to 180lm/w, then the luminaire’s lumen output up to 120lm/w.
Color Temperature available from 220K to 6500K.Branded LED chips in both MacAdam 3step, 5step.
![SLIM (11)](http://www.bvinspiration.com/uploads/SLIM-11.jpg)
![SLIM (3)](http://www.bvinspiration.com/uploads/SLIM-3.gif)
FINISHES
Standard in Matt White textured,
Matt Black textured powder coating
and Silver anodized.
More Customized colors
up 48 options available in
customized service.
