• HILA U10097 Linear With Diffuser Lens

HILA U10097 Linear With Diffuser Lens

Short Description:

Explore our Architectural Interior Light Fixture collection – Linear Lights measuring 100mm × 97mm. Featuring PC diffuser and tunable white technology, perfect for Office LED lighting.

Choose from Suspended, Direct, or Ceiling Linear Light options for versatile illumination solutions that elevate your space.


Product Detail

Download

Product Tags

Features

1. 3-step MacAdam: Our Linear Light fixtures offer precise color consistency with 3-step MacAdam ellipses, ensuring uniform and reliable lighting.

2. 1200mm, 1500mm, 2400mm, Customized: Choose from various lengths, including 1200mm, 1500mm, and 2400mm, or customize your Linear Light to suit your space perfectly.

3. PC Diffuser Lens: The inclusion of a PC Diffuser lens ensures even light distribution, creating a balanced and visually pleasing illumination.

4. Pendant and Ceiling Mounted Installation: Enjoy flexibility with both Pendant and Ceiling mounted installation options, adapting to your space and design preferences.

5. Efficacy up to 130lm/W: Experience outstanding energy efficiency with an efficacy of up to 130 lumens per watt, providing bright illumination while conserving energy.

6. Tunable White: Customize your lighting atmosphere with tunable white technology, adjusting the color temperature to suit various tasks and moods.

7. Dimming by DALI/1-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, you can easily adjust lighting intensity as desired.

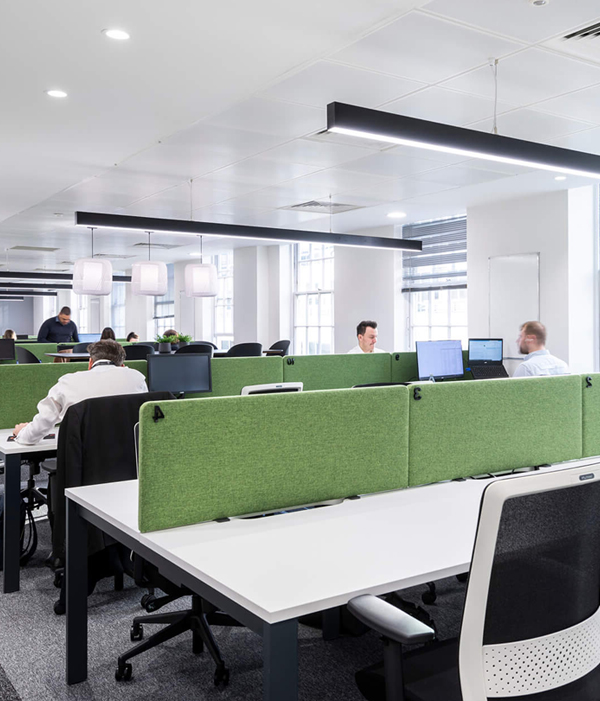

U10097-Features

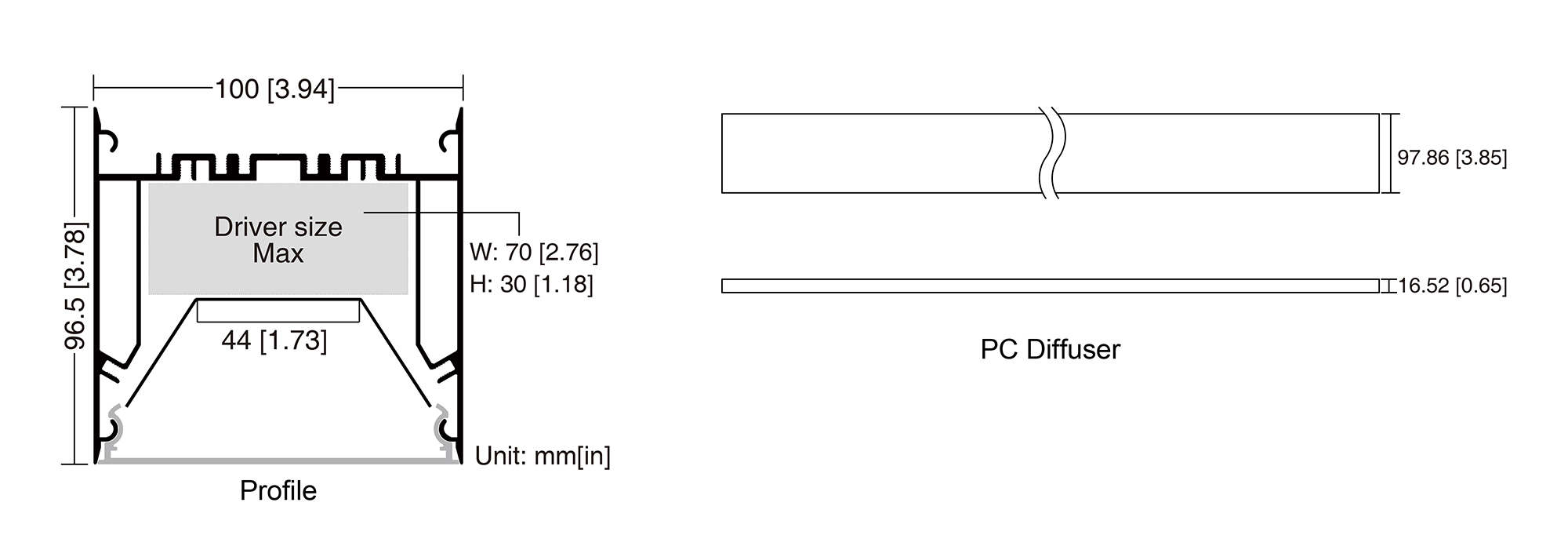

Dimension

U10097-dimension

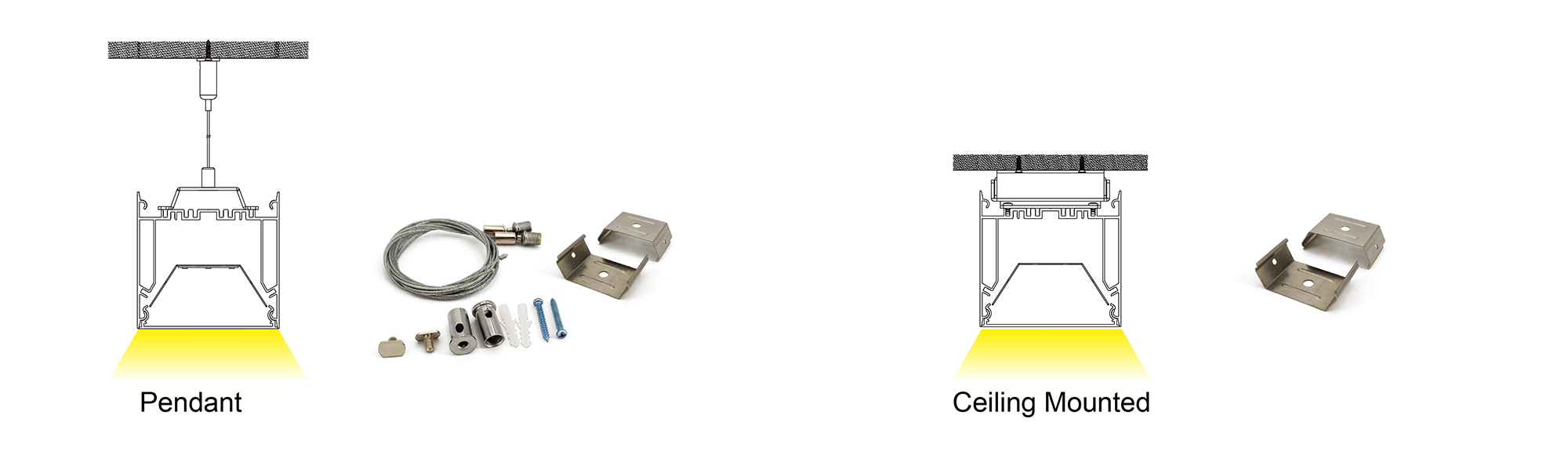

Installations & Accessories

U10097-installations

Specification

Model HILA-U10097 Voltage 220-240VAC
Lens PC Diffuser Power 62.0W/pc
Beam Angle 110° Lumen 7440lm
CRI 80+
90+
LED Bridgelux
CCT 3000K
4000K
Efficiency 120lm/W
Dimension L1208 x W100 x H97mm Installation Pendant
Ceiling Mounted
IP Grade IP22 Color Quality 3-Step MacAdam
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9

Range of Applications

HILA Series – Impeccable illumination for diverse environments. Versatility ensures outstanding lighting outcomes.

H10097-applications-
