HILA H10097 Direct & Indirect Linear Lighting

Short Description:

Discover precision-engineered Architectural LED Lighting for offices. UGR<16 compliance, TIR Lens & Diffuser, and Tunable White technology ensure ideal illumination.

Choose Linear Pendant Lights for versatile Direct & Indirect lighting, elevating any workspace with style and performance.

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Feature

1. Anti-Glaring UGR<16: Our Linear Light products prioritize visual comfort with UGR<16 compliance, ensuring a glare-free and visually soothing lighting experience.

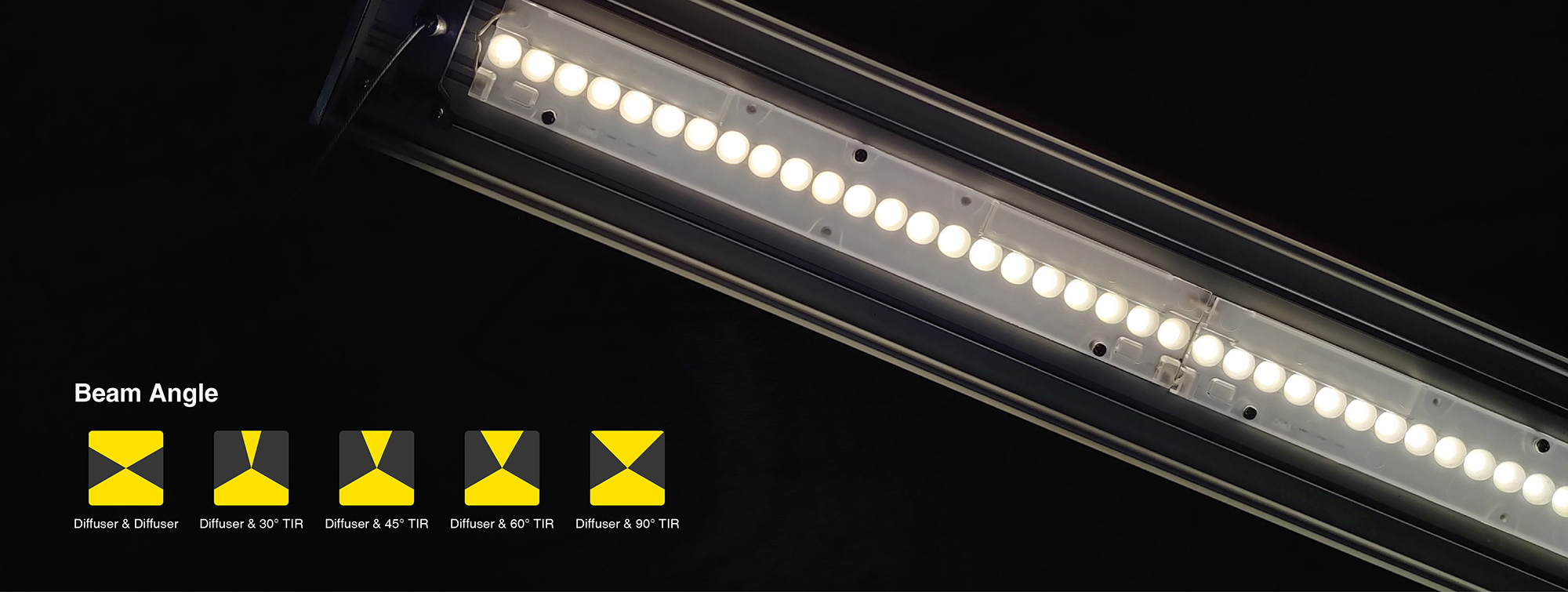

2. TIR Lens & Diffuser: The inclusion of TIR (Total Internal Reflection) Lens & Diffuser technology ensures efficient light distribution, reducing glare and enhancing overall illumination quality.

3. Pendant Installation: Enjoy the flexibility of Pendant installation, adding a touch of elegance to your space while providing versatile lighting options.

4. Efficacy up to 100lm/W: Experience remarkable energy efficiency with an efficacy of up to 100 lumens per watt, delivering bright and efficient illumination while conserving energy.

5. Tunable White: Customize your lighting ambiance with tunable white technology, adjusting the color temperature to match different activities and moods.

6. Dimming by DALI/0-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, you have the flexibility to adjust the lighting intensity to your preference.

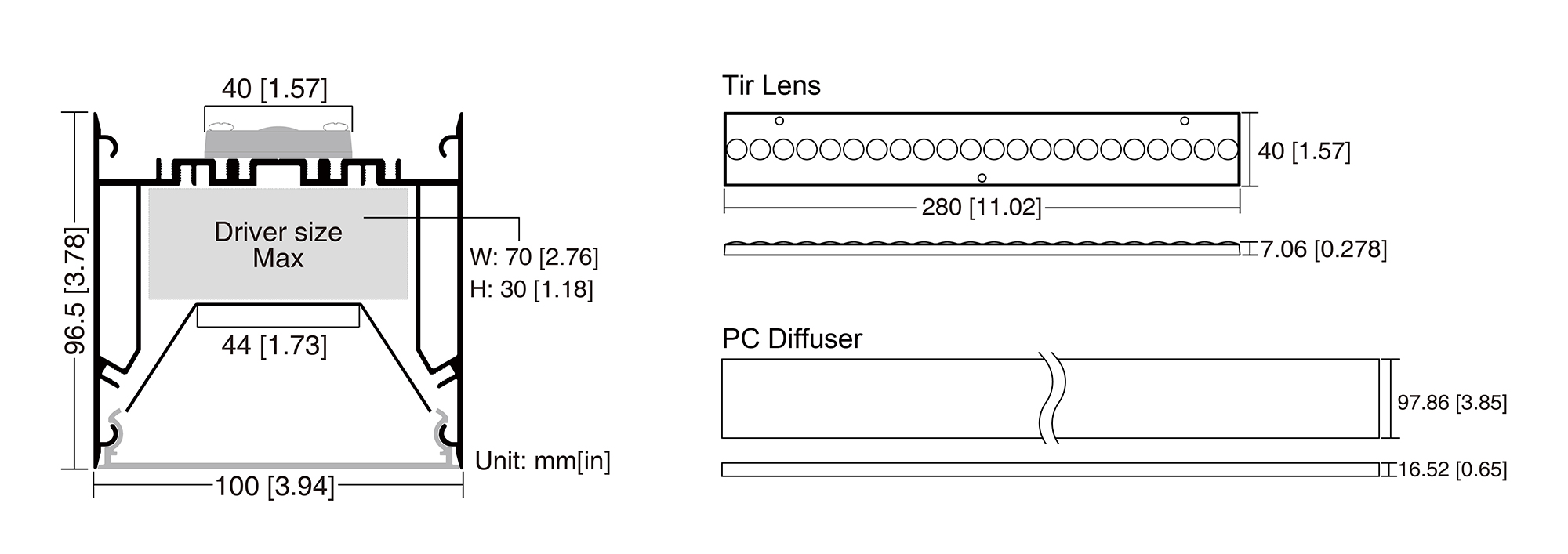

Dimension

Specification

Model	HILA-H10097	Voltage	220-240VAC
Lens	Direct-PC Diffuser Indirect-TIR Lens	Power	62.0W/pc
Beam Angle	30° / 45° / 60° / 90°	Lumen	7440lm
UGR	<16	LED	Bridgelux
CCT	3000K 4000K	Efficiency	120lm/W
Dimension	L1208 x W100 x H97mm	Installation	Pendant Ceiling Mounted
IP Grade	IP22	Color Quality	3-Step MacAdam
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
