OLA100 Ring Linear Light

Short Description:

This huge ring light LED OLA100PC100 is the model with biggest size in the bendable lighting solution OLA series.

It has a huge diameter of 1200mm, a sleek profile of 100mm width and 75mm height, and high quality PC diffuser lens.

CCT from 2200k to 6500k, no flickering effects, color rendering indexes in the CRI> 80, or CRI>90 on request, dimmable or non-dimmable are the main characteristics.

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Product Introduction

Due to its innovative features, stylish design, high quality of its components, the circular light ring gives wider, more uniform illumination and offers exceptional performance, functionally and aesthetically.

Featuring a high Color Rendering Index (CRI) of 90 or 80, it ensures accurate and vibrant color representation.

People can choose the right color temperature from 2200~6500k, offer customizable lighting options for different settings.

This round circle light can be non-dimmable, 0~10v dimmable, or Dali dimmable for different lighting requirements.

During the sus-pendant installation, the LED drivers, which are responsible for regulating and supplying power to the circular led lights, are strategically positioned within the ceiling canopy. This placement not only allows for increased space and airflow for the drivers, ensuring optimal performance and longevity, but also contributes to a seamless and streamlined appearance of the overall installation.

In its family named OLA series, a bendable lighting system, there are other members with different diameters and shapes available.

Feature

1, Curved corners give the luminaires a more sophisticated and stylish design: This design element adds a touch of elegance and sophistication to the overall aesthetic of the lighting fixtures.

2, Silicon lens, softens the light glaring to people's eyes: The circular Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

3, High-quality components, 5-year warranty: The ring LED light fixtures are built using high-quality components, ensuring their durability and long lifespan.

4, CRI80 or CRI90 for selection: With the choice between CRI80 or CRI90, users can select the level of color accuracy and vibrancy they desire for their specific lighting needs.

5, 3000k, 4000k, 6000k for choice: Users can choose from different color temperatures such as 3000K, 4000K, and 6000K, offering warm, neutral, or cool lighting options.

6, Tunable white is available: allowing users to adjust the color temperature according to their specific preferences or changing lighting needs.

7, Models with diameter of 450mm, 900mm, 1000mm, 1200mm for choice: The LED light fixtures are available in multiple sizes to accommodate different spaces and lighting requirements.

For other size or shape to be tailored, please contact us.

8, Pendant installation with drivers hidden in the ceiling canopy: This setting makes the operation or maintenance easier, also gives the space more comfort.

OLA-Ring Series

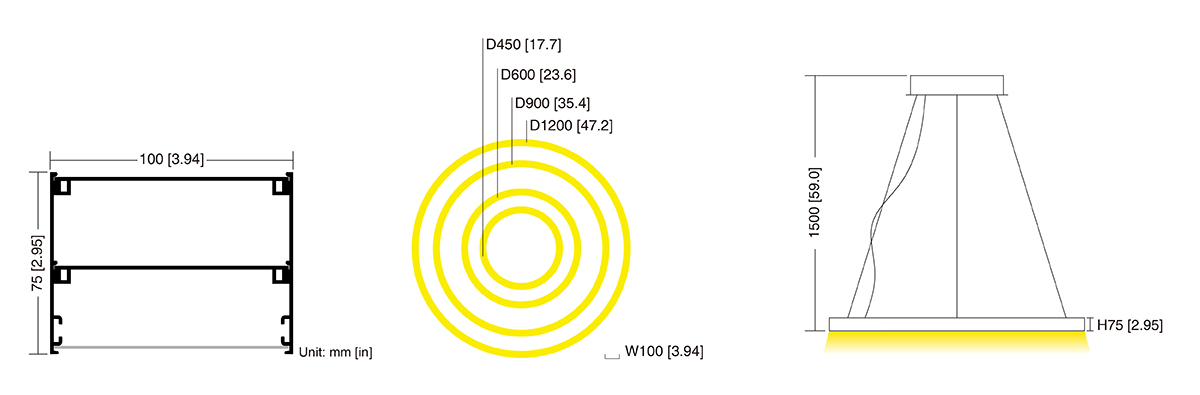

Dimension

Specification

Model	OLA100	Input Vol.	220-240VAC
LED	Bridgelux	LENS	Silicone
Beam Angle	110Deg	CCT	2700K, 3000K, 4000K
Installation	Pendant	CRI	80+, 90+
Dimension	Φ450mm, Φ600mm, Φ900mm, Φ1000mm, Φ1200mm	Color Quality	3-step MacAdam
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	DIM	G1-On/Off G2-0-10V G3-DALI
