ORA3434 Modular Ring Linear Light

Short Description:

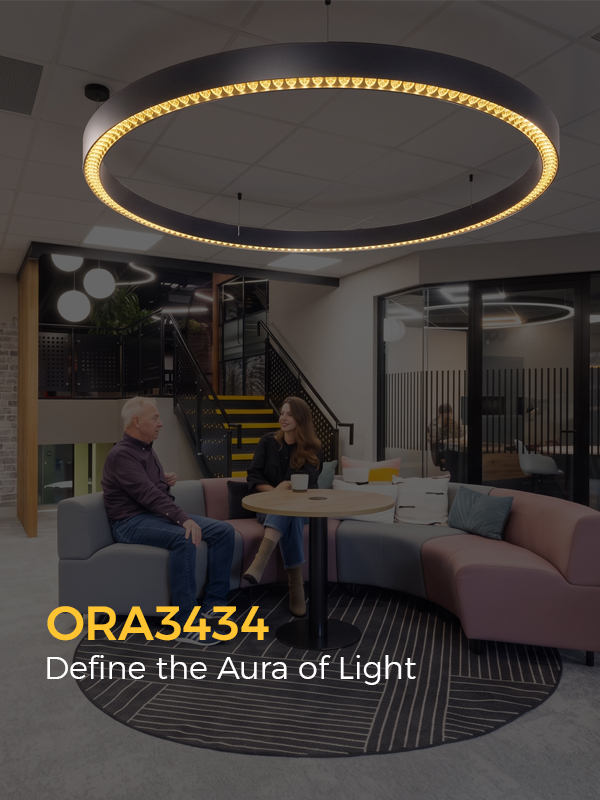

ORA-U3434 is a modular ring linear light designed to create a refined “aura of light” for modern commercial and office interiors.

With its slim W34 × H34mm profile and modular optical units, it allows flexible circular luminaire designs in different diameters, bringing both visual identity and functional illumination to architectural spaces.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

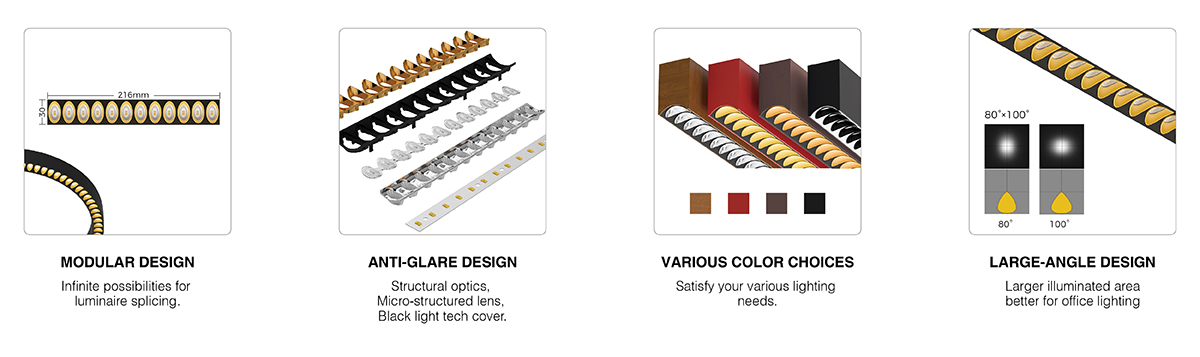

Features

1. Modular Design: infinite possibilities for luminaire splicing.

2. Anti-glare Design: UGR＜9, structural optics+icro-structured lens +black light tech cover.

3. Various Color Choices: satisfy your various lighting needs.

4. Large-angle Design: larger illuminated area, better for office lighting.

5. High Efficiency: up to 120 lm/W.

6. Customizable with Various Shapes: circle, racetrack, S-shaped, straight.

7. Multiple Diameter Choices: we offer a variety of diameter options to cater to different lighting requirements.

8. Versatile Applications: Suitable for a range of settings, from offices to retail spaces.

9. Extruded 6063 alu.: Available in silver or black anodized, as well as white or black powder-coated finishes.

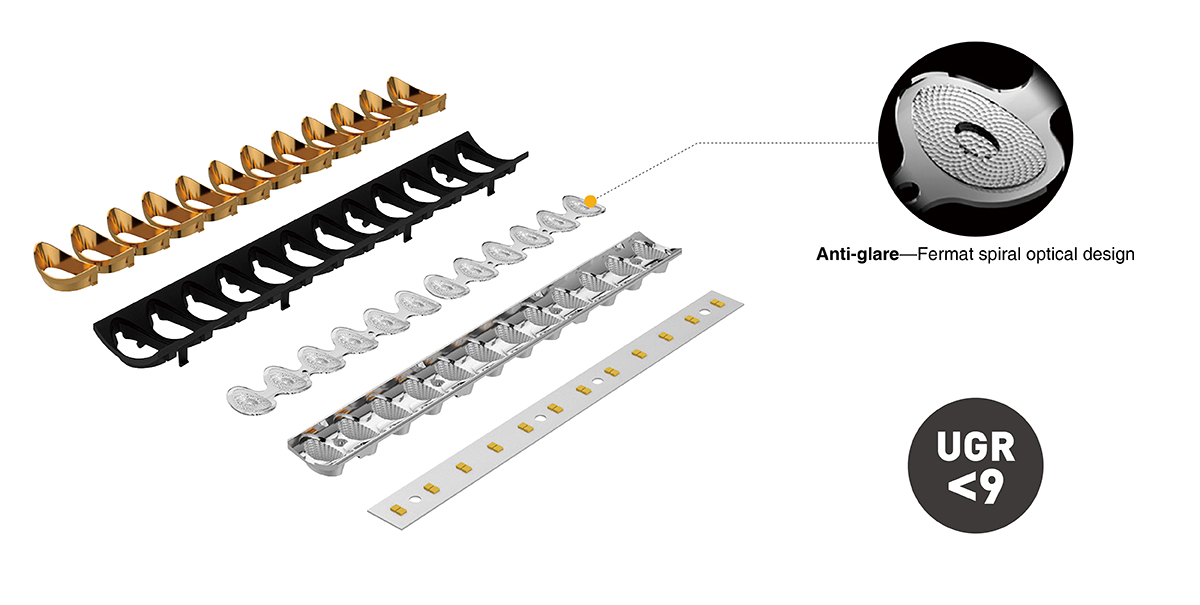

Reflctor Module Exploded View

◆ Structural anti-glare optical design

◆ Micro-structure anti-glare optical lens design

◆ Anti-glare cover manufactured using black-light technology process

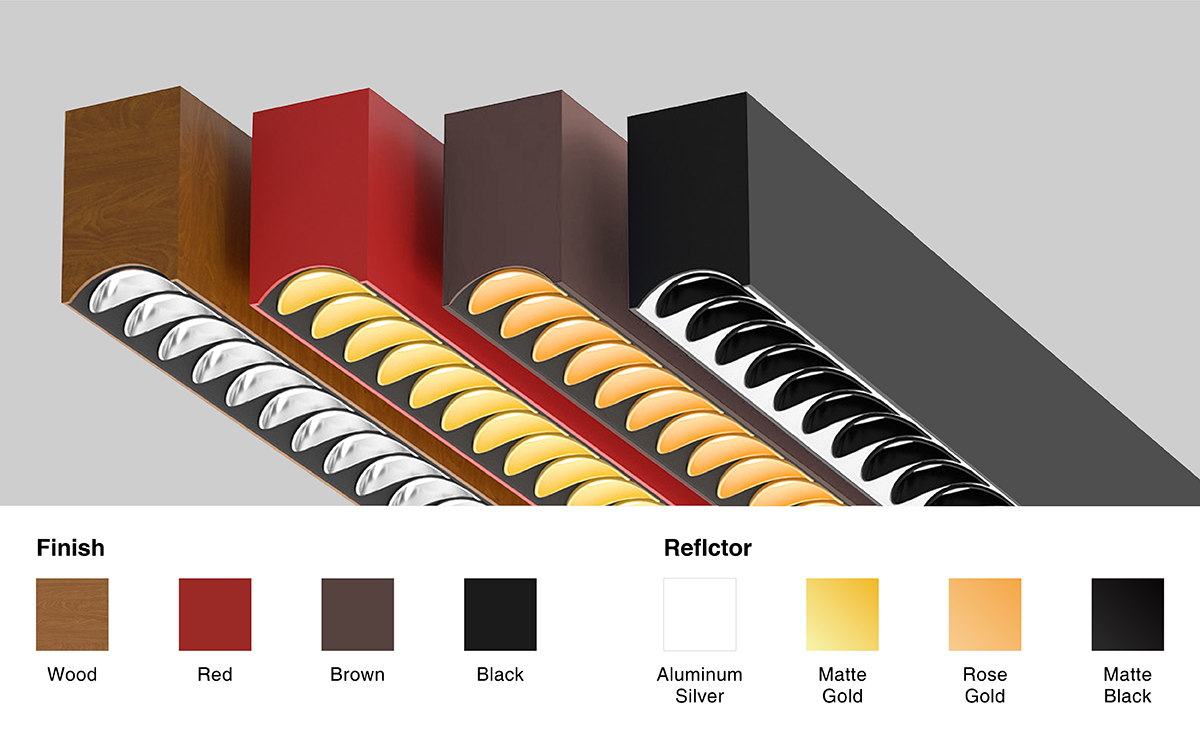

Various Color Choices

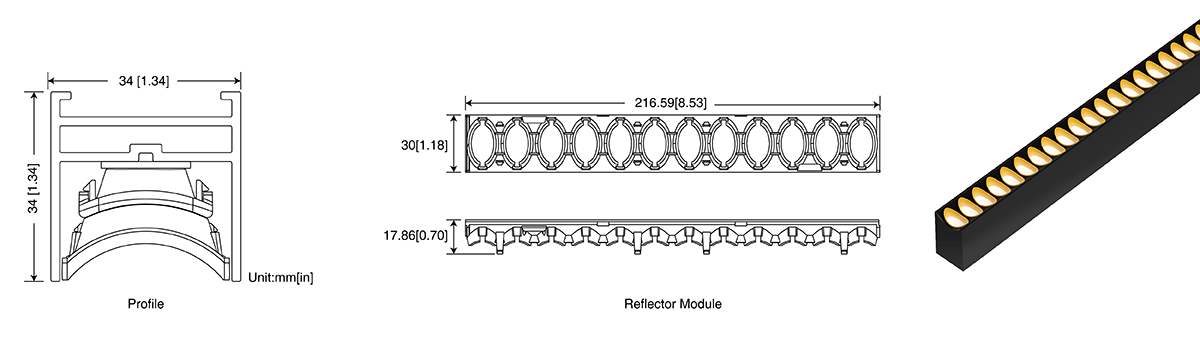

Dimension

Specification

Model	ORA3434
Input Vol.	220V-240VAC
Efficacy	120lm/W
Angle	80°×100°
LENS	Reflector
Installation	ceiling, magnet
CCT	3000K, 4000K
Finish	Extruded 6063 alu., Matt Black, Matt White
Warranty	5-year
Installation	Pendant

Part Code	Power	Lumen	Efficacy	Dimension(mm)
ORA3434-6	40.0W	4800lm	120lm/W	Φ600 x W34 x H34
ORA3434-9	60.0W	7200lm	120lm/W	Φ900 x W34 x H34
ORA3434-12	80.0W	9600lm	120lm/W	Φ1200 x W34 x H34

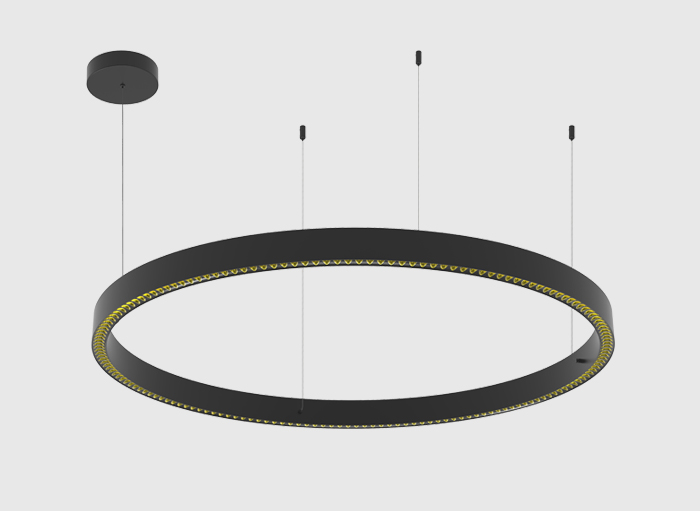

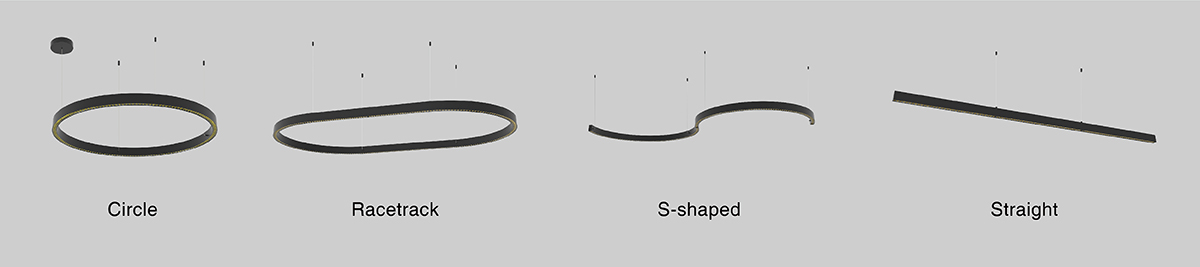

Customizable with Various Shapes

The ORA-Bendable system offers exceptional design flexibility, supporting both curved and straight configurations to enable a wide range of custom layouts, creating unique lighting designs.
