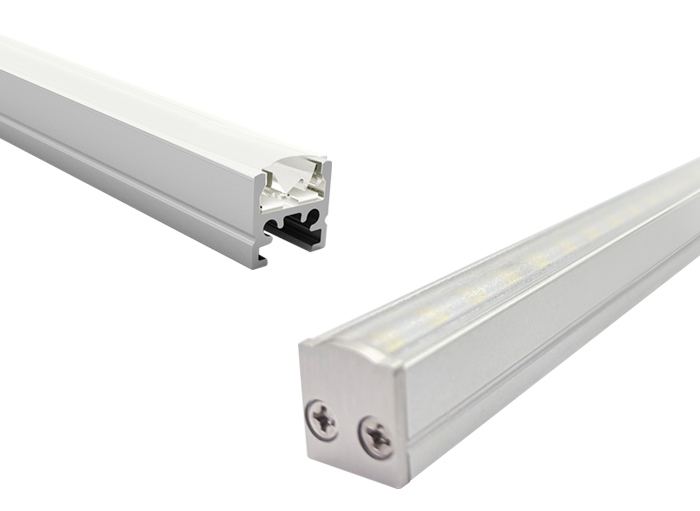

SLX1517 Mini Linear Light

Short Description:

SLX1517 is an ultra-compact linear lighting solution engineered for tight spaces and seamless illumination. Measuring just 15×17mm, it fits where conventional profiles cannot, delivering clean and precise light lines.

Featuring an extruded lens for easy custom-length adjustments and ASY25° asymmetric optics with 71% optical efficiency, SLX1517 provides controlled, uniform illumination ideal for under-cabinet, shelving, display, and architectural accent applications.

Its versatile mounting options: ceiling or magnetic. Allow for quick installation and flexible design integration, making SLX1517 the perfect choice for projects that demand minimal footprint without compromising lighting performance.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

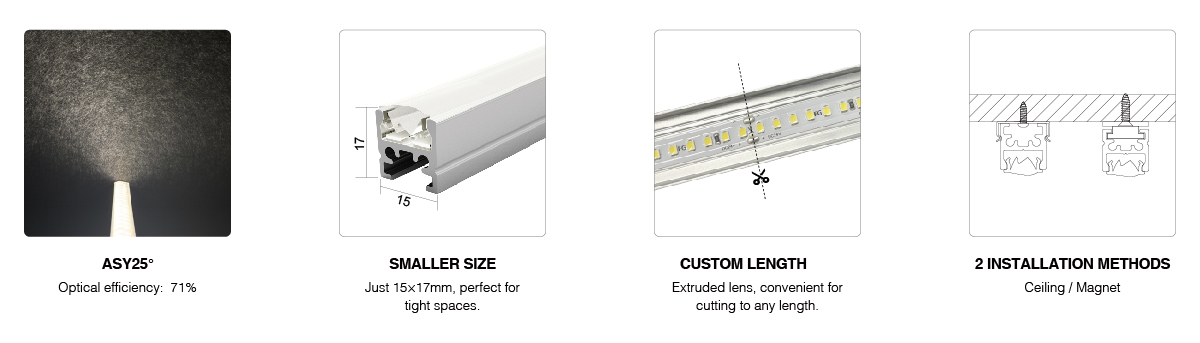

Features

1. ASY25°: Asymmetric optics with 71% optical efficiency.

2. Smaller Size: Measuring just W15×H17mm, it fits where conventional profiles cannot.

3. High Efficiency: Up to 120 lm/W.

4. 2 mounting Methods: Ceiling or magnetic, allow for quick installation and flexible design integration

5. Custom Length: Extruded lens, convenient forcutting to any length.

6. Custom RAL Colors: Available to meet unique project requirements.

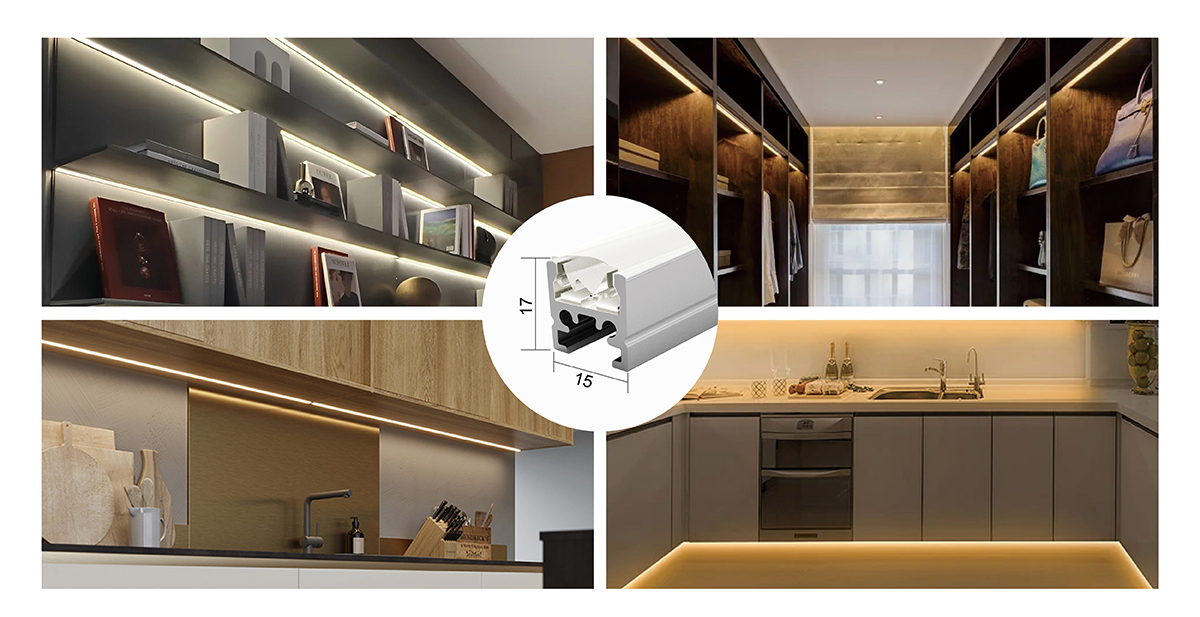

7.Versatile Applications: Suitable for cabinets, wardrobes, display shelves, ceiling coves, and wall-washing applications.

8. Extruded 6063 alu.: Available in silver or black anodized, as well as white or black powder-coated finishes.

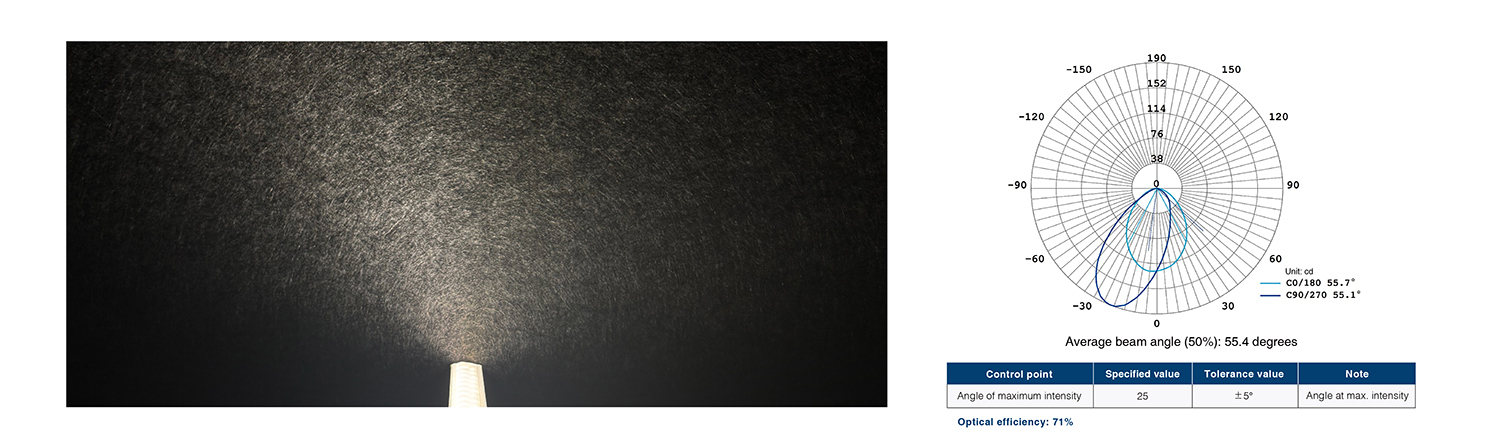

ASY25°

Smaller Size

Its dimensions are only W15×H17 mm, allowing it to access areas that conventional lighting fixtures cannot reach, delivering clear and precise light lines—specifically designed for confined spaces.

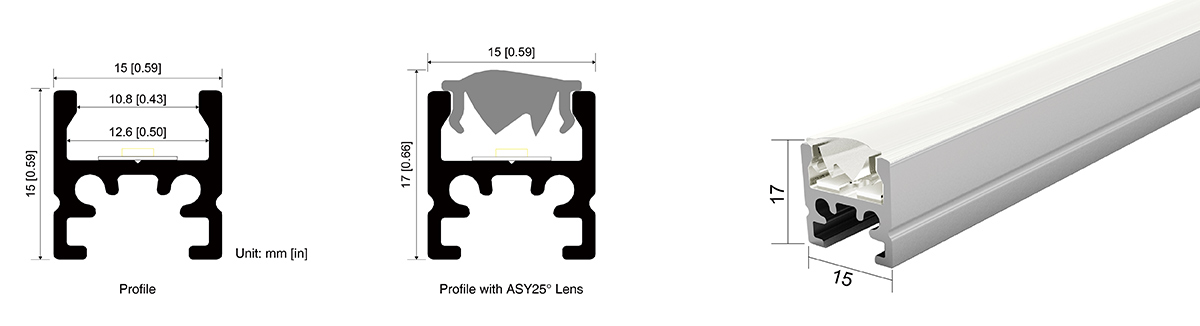

Dimension

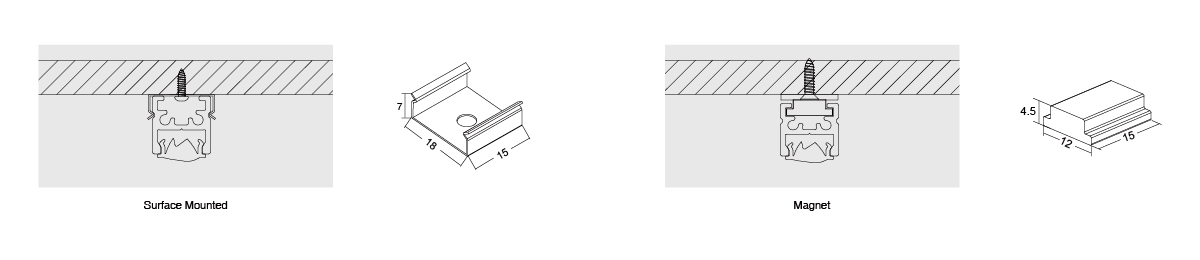

Two Installation Methods

The SLX1517 series supports 2 mounting options: ceiling, magnet, which can offer multiple solutions for varying installation needs.

Specification

Model	SLX1517
Input Vol.	24VDC
Efficacy	120lm/W
LED	2835
LENS	ASY25°
Installation	ceiling, magnet
CCT	2700K, 3000K, 3500K, 4000K, 5000K
Finish	Extruded 6063 alu., Matt Black, Matt White
Warranty	5-year
Package	12pcs/caton with PE bags and foam protection

Part Code	Power	Lumen	Efficacy	Dimension(mm)
1517-0.3	4.0W/pc	480lm	120lm/W	W15 x H17 x L305
1517-0.6	8.0W/pc	960lm	120lm/W	W15 x H17 x L605
1517-1.2	16.0W/pc	1920lm	120lm/W	W15 x H17 x L1205
1517-1.5	200W/pc	2400lm	120lm/W	W15 x H17 x L1505
1517-1.8	24.0W/pc	2880lm	120lm/W	W15 x H17 x L1805
1517-2.4	32.0W/pc	3840lm	120lm/W	W15 x H17 x L2405
