SLX2613 Mini Multi-Angle Linear Light

Short Description:

SLX2613 is a compact linear lighting solution designed for precision and flexibility in architectural applications.Featuring 10 optional beam angles, it easily adapts to different lighting needs.

With a high efficacy up to 130 lm/W, SLX2613 delivers efficient performance in a mini-size profile, supporting customized lengths and 4 mounting options for seamless integration. Its specially treated optical system ensures

uniform, spot-free light output, making it an ideal choice for cabinets, wardrobes, display shelves, ceiling coves.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

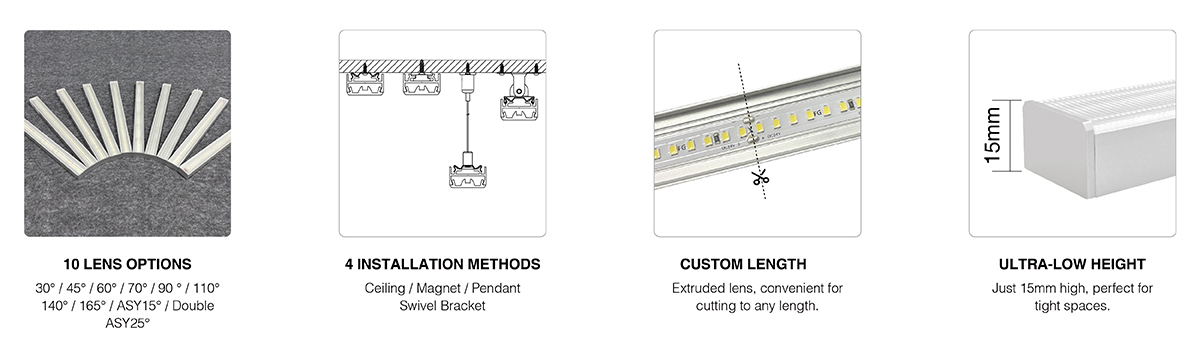

Features

1. 10 LENS Optional: 30°, 45°, 60°, 70°, 90°, 110°, 140°, 165°, ASY15° and Double ASY25°.

2. High Efficiency: Up to 130 lm/W.

3. 4 mounting Methods: Ceiling, Magnet, Pendant and Swivel bracket.

4. Custom Length: Extruded lens, convenient forcutting to any length. .

5. Just 15mm high: Perfect for tight spaces.

6. Custom RAL Colors: Available to meet unique project requirements.

7.Versatile Applications: Suitable for cabinets, wardrobes, display shelves, ceiling coves, and wall-washing applications.

8. Extruded 6063 alu.: Available in silver or black anodized, as well as white or black powder-coated finishes.

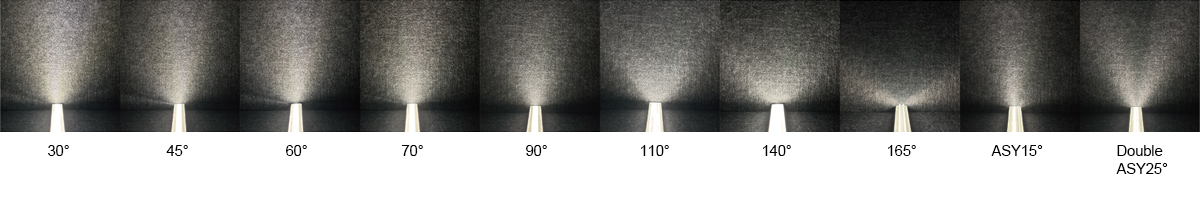

10 LENS Options

The SLX2613 series offers 10 lens options to choose from: 30°, 45°, 60°, 70°, 90°, 110°, 140°, 165°, ASY15° and Double ASY25°, which can satisfy your different lighting requirements.

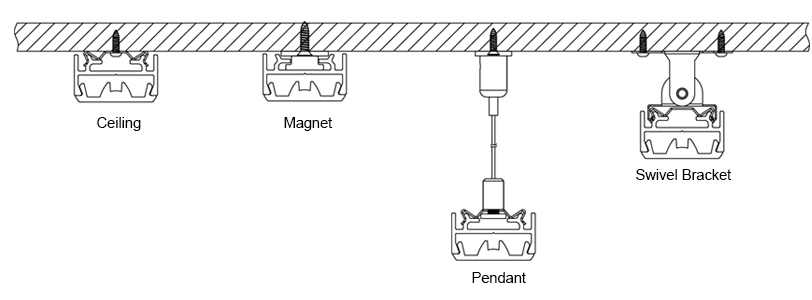

4 Installation Methods

The SLX2613 series supports 4 mounting options: ceiling, magnet, pendant and swivel bracket, which can offer multiple solutions for varying installation needs.

Specification

Model	SLX2613
Input Vol.	24VDC
Efficacy	130lm/W
LED	2835
LENS	30°, 45°, 60°, 70°, 90°, 110°, 140°, 165°, ASY15° and Double ASY25°
Installation	ceiling, magnet, pendant and swivel bracket
CCT	2700K, 3000K, 4000K
Finish	Extruded 6063 alu., Matt Black, Matt White
Warranty	5-year
Package	12pcs/caton with PE bags and foam protection

Part Code	Power	Lumen	Efficacy	Dimension(mm)
2613-0.6	9.0W/pc	1170lm	130lm/W	W26.5 x H15 x L603
2613-1.2	18.0W/pc	2340lm	130lm/W	W26.5 x H15 x L1203
2613-1.5	22.5W/pc	2925lm	130lm/W	W26.5 x H15 x L1503
2613-1.8	27.0W/pc	3510lm	130lm/W	W26.5 x H15x L1803
2613-2.4	36.0W/pc	4680lm	130lm/W	W26.5 x H15 x L2403

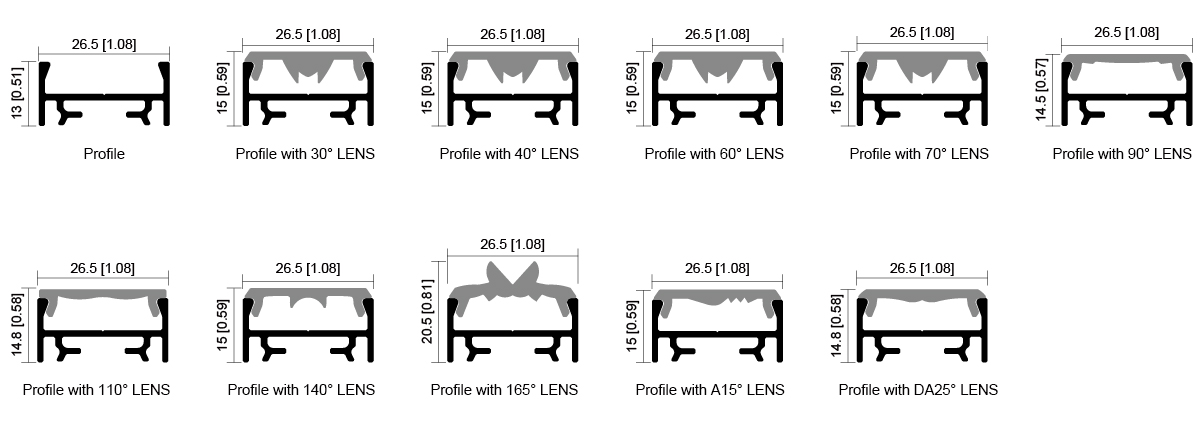

Dimension

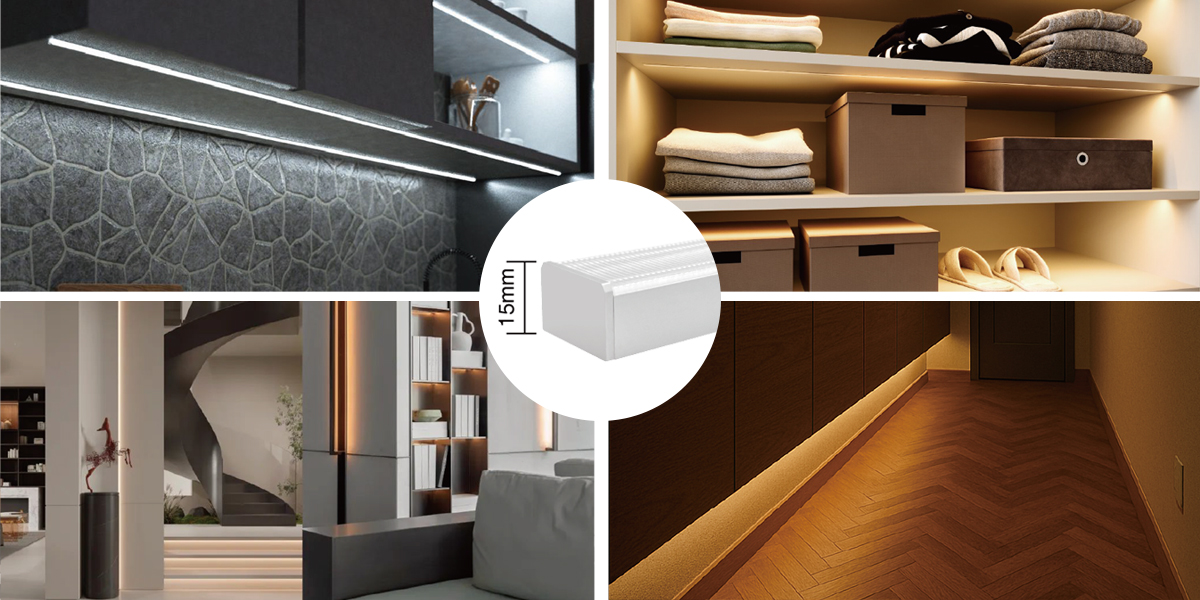

Applications

The SLX2613 series specially treated optical system ensures uniform, spot-free light output, making it an ideal choice for cabinets, wardrobes, display shelves, ceiling coves, and wall-washing applications where clean lines and controlled light matter.
