• LINK-U5175 Integrated Quick Connect Linear Light

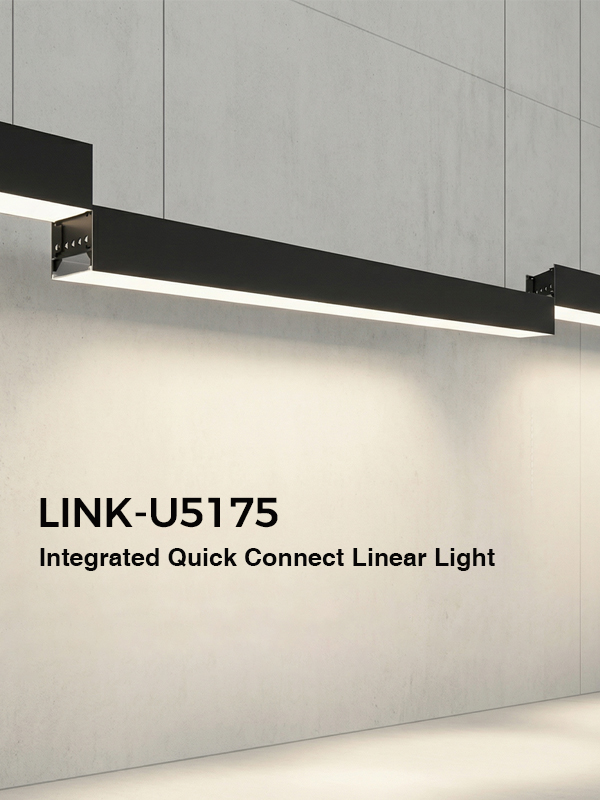

LINK-U5175 Integrated Quick Connect Linear Light

Short Description:

LINK is an integrated linear lighting system designed for fast installation and seamless continuity. Its all-in-onequick connect design combines structural joining and electrical connection in a single step, enabling rapid assembly
with clean, precise alignment.
Compatible with roll-type flexible diffusers supplied in continuous lengths, LINK eliminates visible joints to create a smooth, uninterrupted light line. Itis ideal for offices, corridors, retail spaces, and large-scale linear ceiling applications.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Download

    Product Tags

    Features

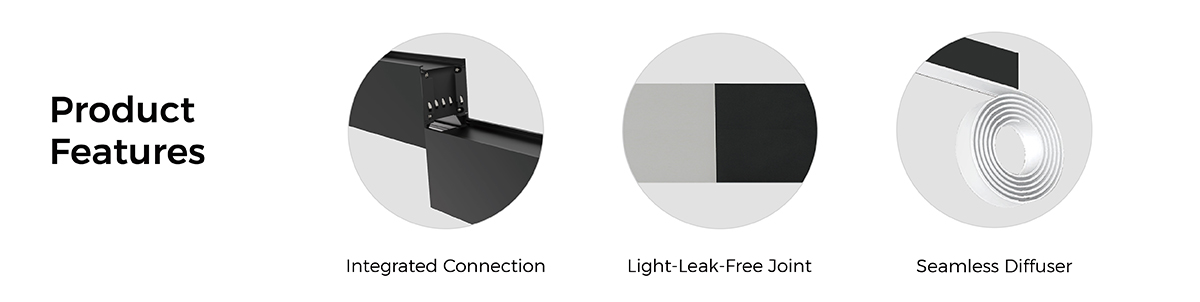

    1. Integrated Connectionstructure and electrical connection in one integrated system.

    2. Light-Leak-Free Joint: special joint design eliminates light leakage at connections.

    3. Seamless Diffuserdiffuser supplied in rolls, eliminating visible gaps.

    4. High Efficiency: up to 120 lm/W.

    5. Multiple Connectors Available: offers the different connectors to release the multi linking, including the T / + / L and Straight connector.

    6.Features Two Installation Methods: pendant & ceiling mounted, which can offer multiple solutions for varying installation needs.

    7.Customizable Length: Tailor the length to fit your specific needs.

    8. Custom RAL Colors: Available to meet unique project requirements.

    9.Versatile Applications: Suitable for a range of settings, from offices to retail spaces.

    10. Extruded 6063 alu.: Available in silver or black anodized, as well as white or black powder-coated finishes.

    LINK-features
    LINK-U5175-features

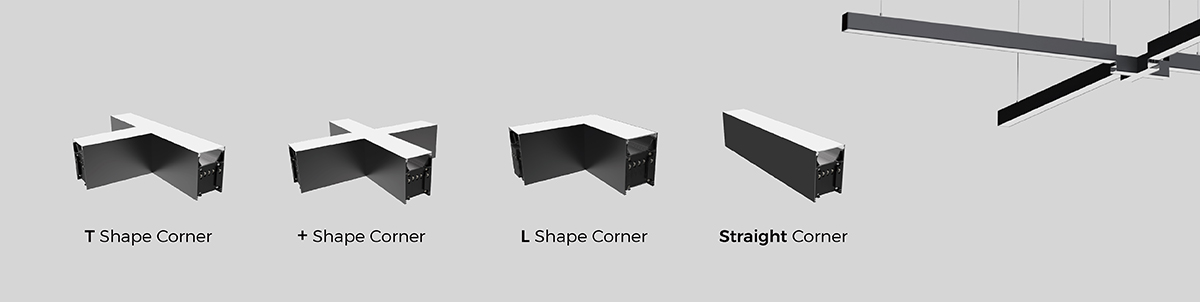

    Multiple Connectors Available

    Offers the different connectors to release the multi linking, including the T / + / L and Straight connector.

    LINK-Connectors

    Specification

    Model U5175 Input Vol. 220-240VAC
    Power 25W/m Lens PC Diffuser
    Efficacy 120lm/W CCT 2700K, 3000K, 4000K
    Installation Pendant, Ceiling Mounted CRI 80+, 90+
    Dimension L1200 x W51 x H75mm
    L1500 x W51 x H75mm
    Color Quality 3-step MacAdam
    Finish Textured Black (RAL9004)
    Textured White (RAL9003)
    Silver Anodized
    DIM G1-On/Off
    G2-0-10V
    G3-DALI

    Dimension

    LINK-dimension

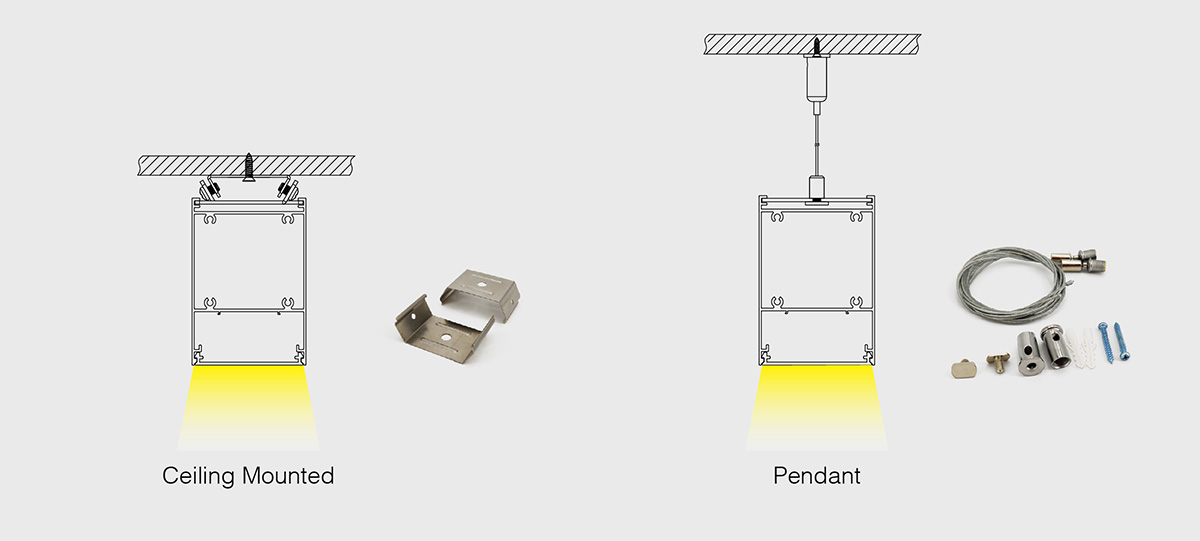

    Installations & Accessories

    Features 2 mounting options: pendant & ceiling mounted, which can offer multiple solutions for varying installation needs.

    LINK-U5175-installation

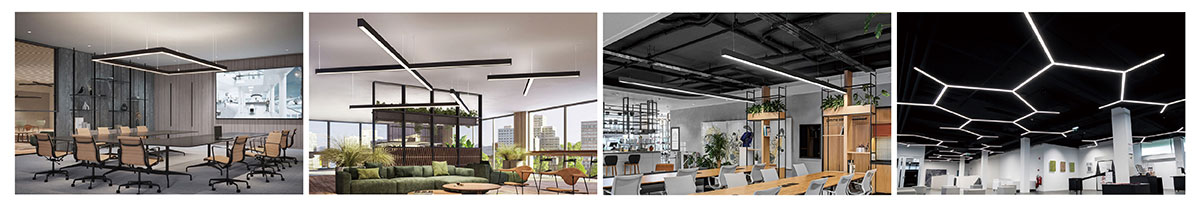

    Applications

    LINK eliminates visible joints to create a smooth, uninterrupted light line. It is ideal for offices, corridors, retail spaces, and large-scale linear ceiling applications.

    LINK-U5175-applications
