HONG H7590 Direct & Indirect Linear-Prismatic Lens

Short Description:

Introducing our HONG series: Direct & Indirect Lighting with Prismatic Lens.

Featuring a sleek design and compact size of 75x90mm, these lights are offered in lengths of 600mm, 1200mm, 1500mm, 2400mm, or customizable options tailored to meet your specific needs.

Designed for seamless integration, they provide versatile installation options including Sus-Pendant, Wall Mounted, and Trimless/Trimed Recessed installations.

Our UGR<19 Anti-Glare feature ensures optimal illumination without compromising comfort, allowing you to illuminate your space with style and sophistication.

The Linear Light series offers White color options ranging from 2700K to 6500K, with dimmable driver options available in Dali, 0/1-10V, and DMX protocols.

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Features

1. Elegant design with internal driver: L600/1200/1500/2400 × W75 × H90mm.

2. UGR<19 Anti-glare: Prismatic Lens.

3. More lighting options: 80+ or 90+ Ra, white color from 2200K~6500K, and tunable white.

4. More dimming/controlling options: DALI, 0/1-10V, On/Off.

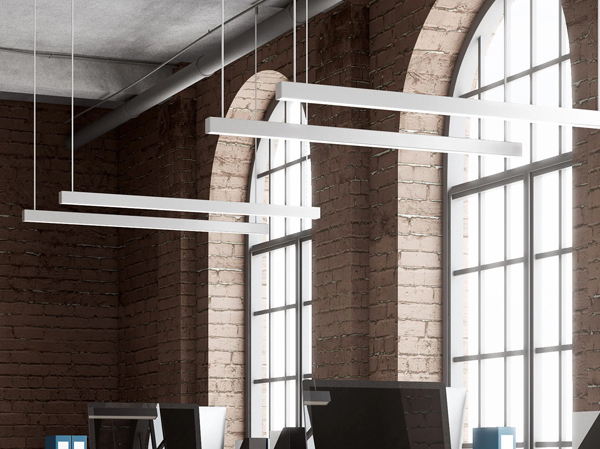

5. Multiple installation options: Pendant mounted, Ceiling mounted, Wall mounted, Recessed mounted.

6. Gapless joining in field: Gapless joining solution that significantly reduces field labor requirements.

7. High efficacy up to 120lm/W: Delivering bright illumination while conserving energy.

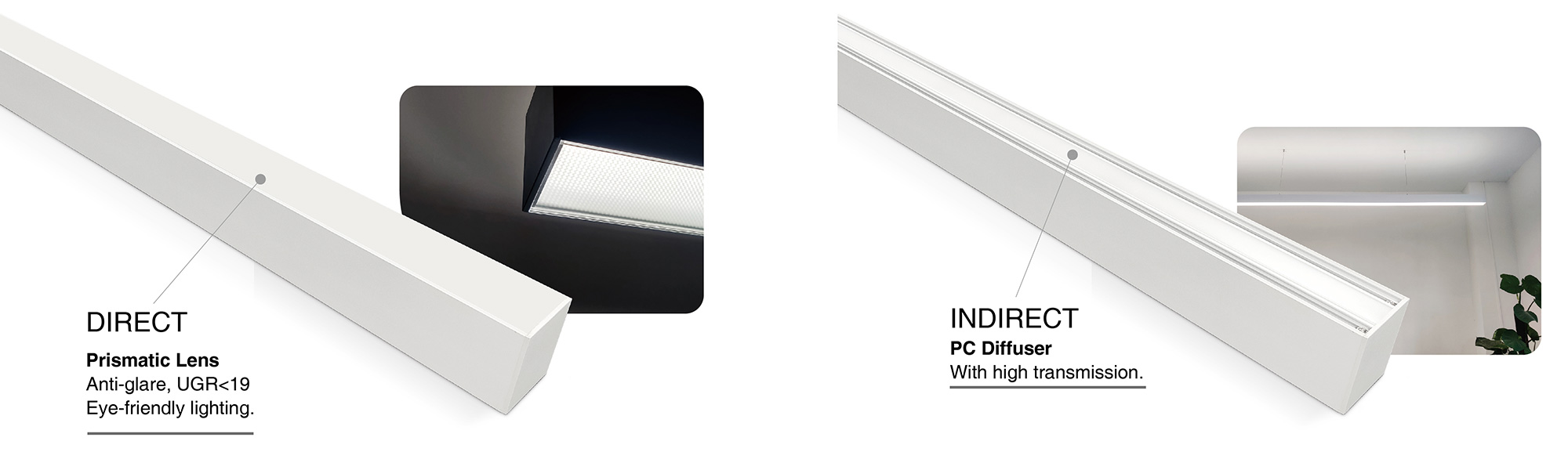

Diffuser

Dimension & Installations

Specification

Model	HONG-H7590-PM	Voltage	220-240VAC
Lens	Direct-Prismatic Lens Indirect-PC Diffuser	Power	Direct-25.0W Indirect-13.0W
Beam Angle	Direct-85° Indirect-110°	Lumen	Direct-2180lm Indirect-1600lm
UGR	<19	LED	2835SMD
CCT	3000K 4000K	Efficiency	110lm/W
Dimension	L1215 x W75 x H90mm	Installation	Pendant Ceiling Mounted Wall Mounted
IP Grade	IP22	Color Quality	3-Step MacAdam
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
