1. Anti-Glaring UGR<16: Our Linear Light products prioritize visual comfort with UGR<16 compliance, ensuring minimal glare and creating a soothing lighting environment.
2. Louver&Reflector Lens: The integration of Louver&Reflector technology guarantees efficient light distribution, minimizing glare and enhancing overall illumination quality.
3. Pendant and Ceiling Mounted Installation: Enjoy flexibility with both Pendant and Ceiling mounted installation options, adapting seamlessly to your design vision.
4. Gapless Joining in Field: Achieve a continuous and seamless appearance when multiple fixtures are installed with Gapless joining technology.
5. 12° / 24° Angle Options: Tailor the lighting to your preference with selectable 12° or 24° beam angles, offering flexibility in directing light.
6. Dimming by DALI/1-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, adjust the lighting intensity to your liking.
| Model | HAO-U5593 | Voltage | 220-240VAC |
| Lens | Louver & Reflector | Power | 42.0W |
| Beam Angle | 12° / 24° | Lumen | 4200lm |
| UGR | <16 | LED | Bridgelux |
| CCT | 3000K 4000K |
Efficiency | 100lm/W |

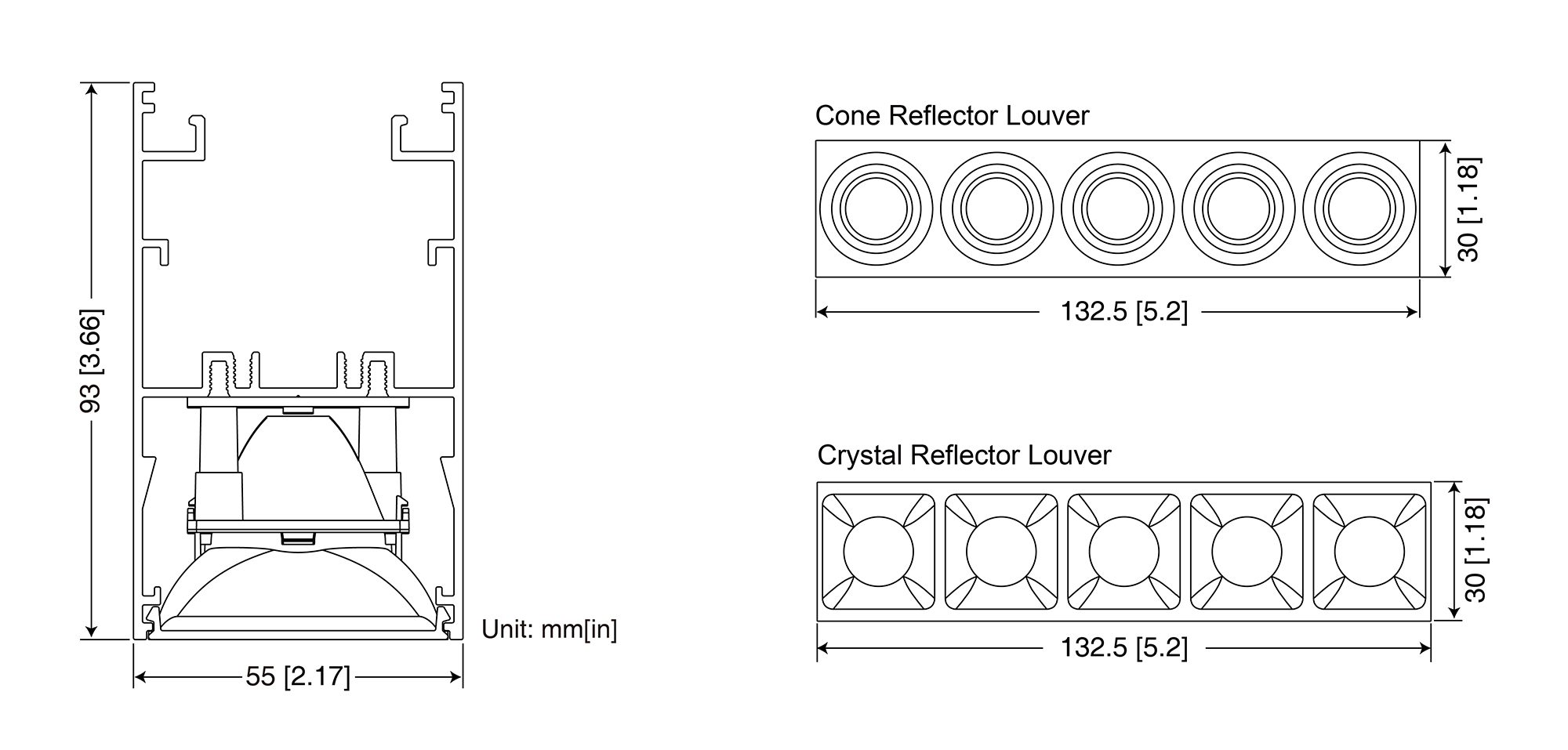

| Dimension | L1208 x W55 x H93mm | Installation | Pendant |
| IP Grade | IP22 | Color Quality | 3-Step MacAdam |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |

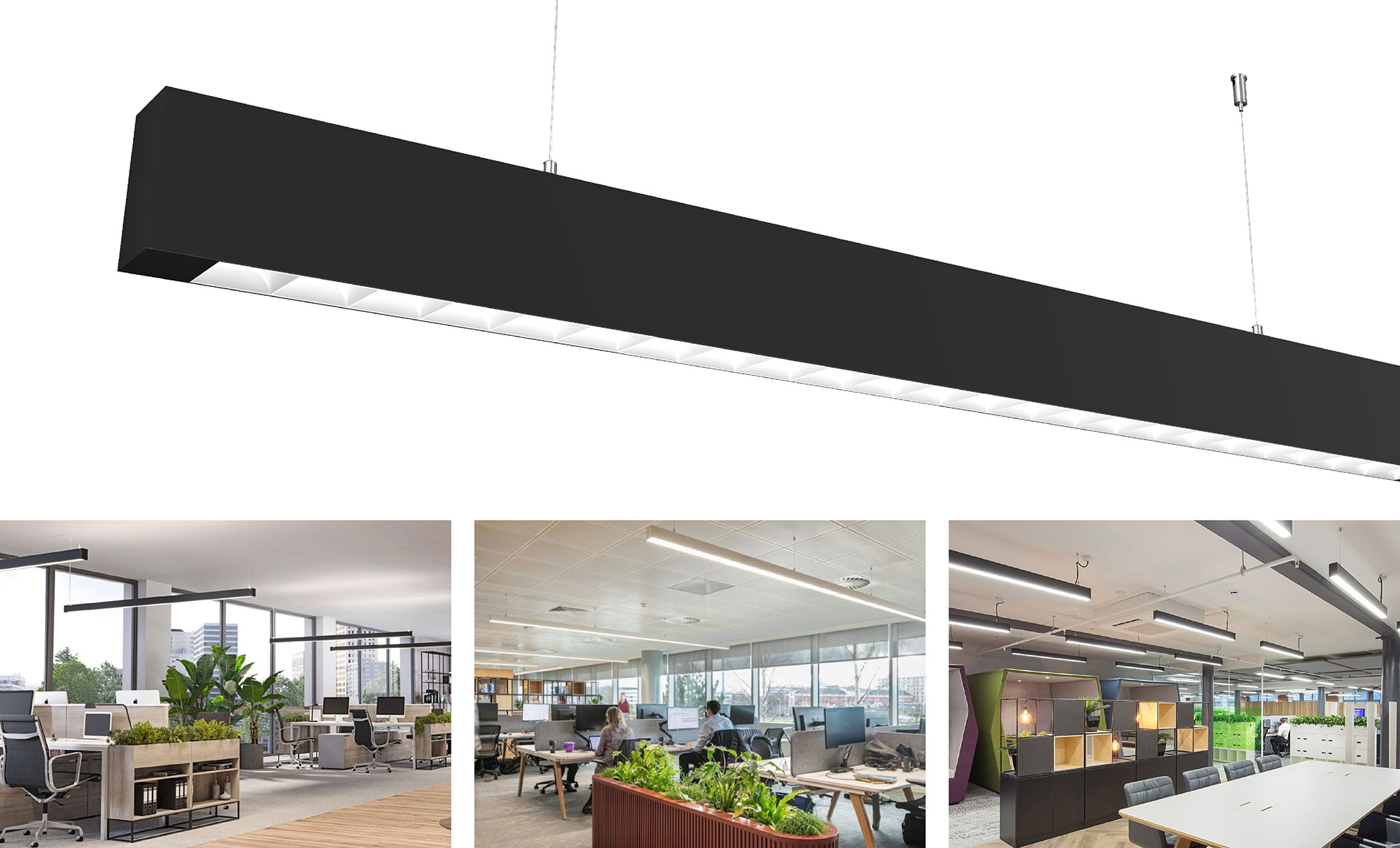

The HAO series delivers outstanding lighting outcomes for a variety of settings: offices, educational institutions, and conference rooms. Its versatility ensures impeccable illumination tailored to each environment's unique demands.
