H5076 Single-row Lens Direct ＆ Indirect Linear Light

LUZX Series is a high performance linear lighting fixture designed for both

Direct & Indirect or direct-only illumination, offering versatility for various

space designs.

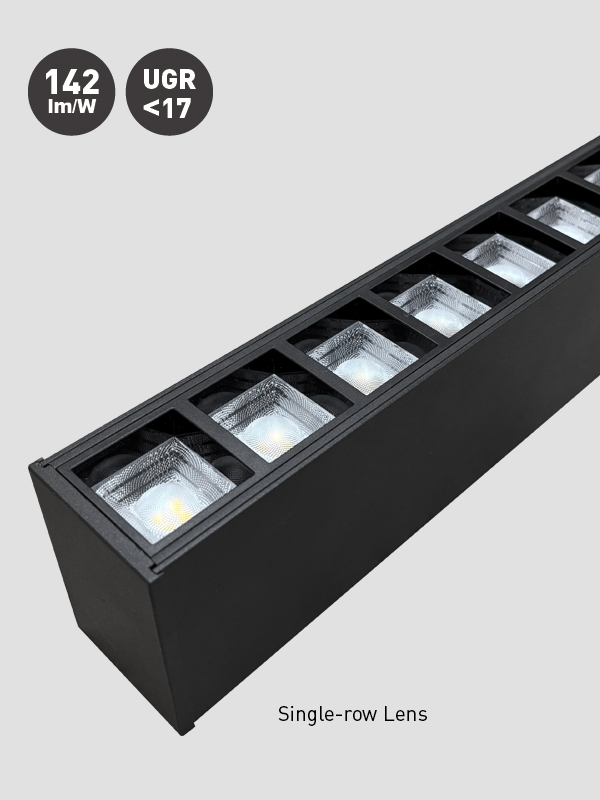

Single-row Lens with a light efficacy of up to 142lm/W and a UGR<17 rating,

it ensures visual comfort with low glare, making it ideal for office, retail,

and architectural applications.

Whether you need uplight & downlight for balanced ambient lighting

or a clean direct-only output, LUZX H5076 is engineered to combine

performance, flexibility, and design in one sleek profile.

Send email to us

Product Detail

1. Highly Flexible: Designed for both direct & indirect or direct only lighting.

2. High Efficiency: At least 142lm/W with Osram LEDs.

3. Anti-Glare Technology: UGR<17 ensures a comfortable lighting experience.

4. Multiple Optics Available: Including Double-row Lens (60°/75°), Single-row Lens (75°), Prismatic lens (90°), and PC diffuser (110°) .

5. Dual Lighting Angles: Direct lighting Single-row Lens at 75° and Indirect lighting at 110°.

6.High-quality Lighting: With excellent color rendering (high R9, R15 values).

7.Customizable Length: Tailor the length to fit your specific needs.

8. Custom RAL Colors: Available to meet unique project requirements.

9.Versatile Applications: Suitable for a range of settings, from offices to retail spaces.

10. Extruded 6063 alu.: Available in silver or black anodized, as well as white or black powder-coated finishes.

Model	H5076-SRL	Input Vol.	220-240VAC
Optical	Direct-Single-row Lens, Indirect-PC Diffuser	Power	Direct-25.0W/pc, Indirect-12.0W/pc, Total Power-37.0W
Beam Angle	Direct-75°, Indirect-110°	Lumen	Direct-3570lm, Indirect-1550lm, Total Lumen-5052lm
UGR	<17	Efficacy	Direct-150lm/W, Indirect-125lm/W, Total Efficacy-142lm/W
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	DIM	G1-On/Off G2-0-10V G3-DALI
CRI	80+, 90+	CCT	3000K, 4000K

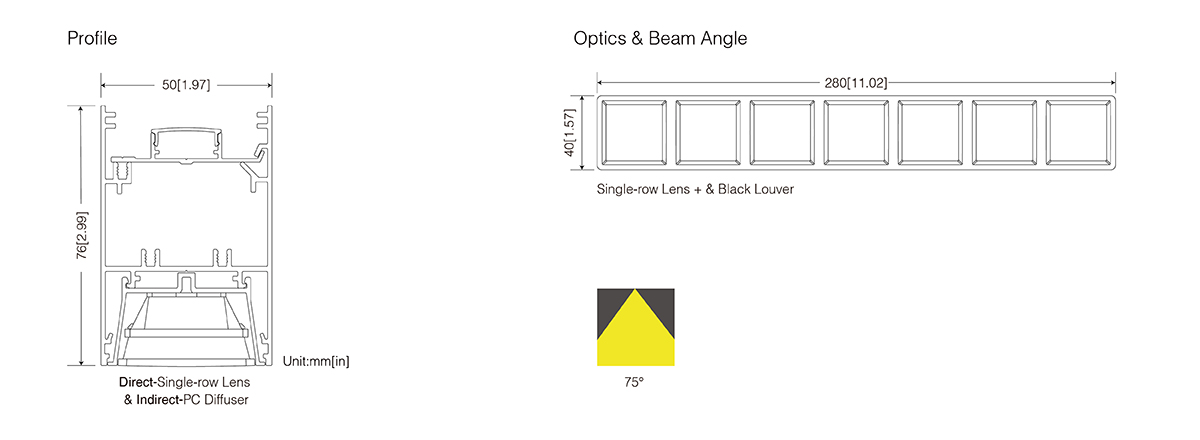

Color Quality	3-step MacAdam	Dimension	L1114 x W50 x H76mm
Installation	Pendant	Life Time L80B10	50,000hrs
