H5076 Prismetic Lens Direct ＆ Indirect Linear Light

Short Description:

LUZX Series is a high performance linear lighting fixture designed for both

direct & indirect or direct-only illumination, offering versatility for various

space designs.

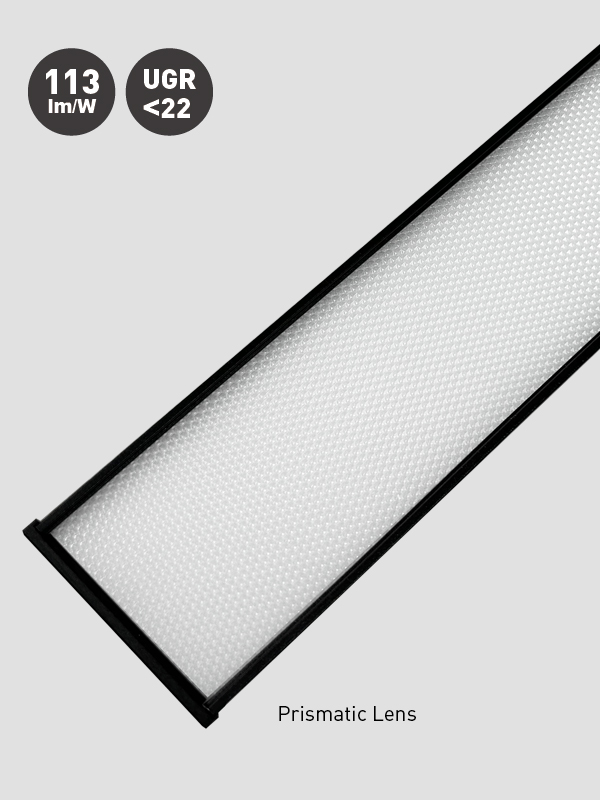

Direct-Prismatic Lens with a light efficacy of up to 113lm/W and a

UGR<22 rating,it ensures visual comfort with low glare, making it ideal for

office, retail, and architectural applications.

Whether you need uplight & downlight for balanced ambient lighting

or a clean direct-only output, LUZX H5076 is engineered to combine

performance, flexibility, and design in one sleek profile.

Send email to us

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Features

1. Highly Flexible: Designed for both direct & indirect or direct only lighting.

2. High Efficiency: At least 142lm/W with Osram LEDs.

3. Anti-Glare Technology: UGR<22 ensures a comfortable lighting experience.

4. Multiple Optics Available: Including TIR lens (60°/75°), Prismatic lens (90°), and PC diffuser (110°) .

5. Dual Lighting Angles: Direct lighting (Prismatic lens) at 90° and indirect lighting at 110°.

6.High-quality Lighting: With excellent color rendering (high R9, R15 values).

7.Customizable Length: Tailor the length to fit your specific needs.

8. Custom RAL Colors: Available to meet unique project requirements.

9.Versatile Applications: Suitable for a range of settings, from offices to retail spaces.

10. Extruded 6063 alu.: Available in silver or black anodized, as well as white or black powder-coated finishes.

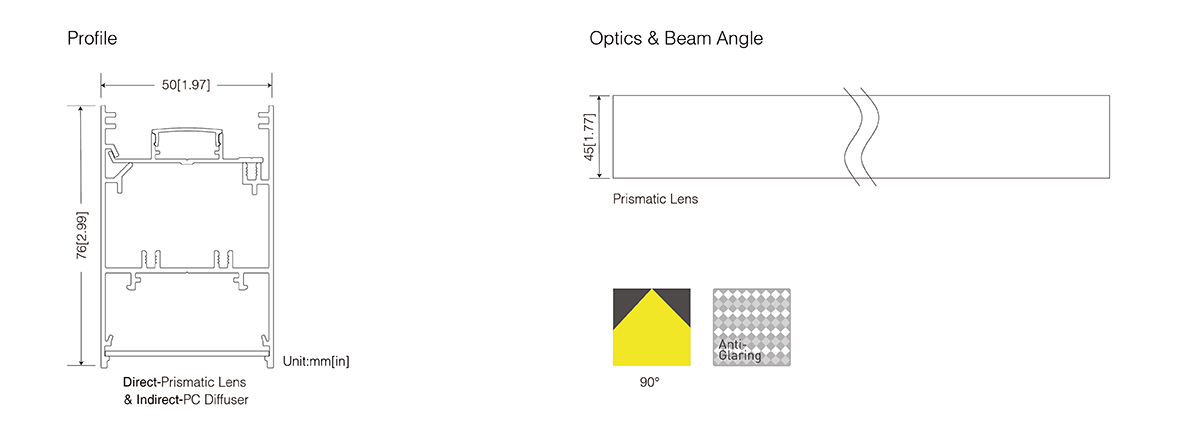

Multiple Optics Available

LUZX Series support a range of optical solutions, including TIR Lens (60°/75°), Prismatic Lens (90°), and PC Diffuser (110°) to achieve precise light distribution.

Specification

Model	H5076	Input Vol.	220-240VAC
Optical	Direct-Prismatic Lens, Indirect-PC Diffuser	Power	Direct-25.0W/pc, Indirect-12.0W/pc, Total Power-37.0W
Beam Angle	Direct-90°, Indirect-110°	Lumen	Direct-2750lm, Indirect-1440lm, Total Lumen-4190lm
UGR	<22	Efficacy	Direct-110lm/W, Indirect-120lm/W, Total Efficacy-113lm/W
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	DIM	G1-On/Off G2-0-10V G3-DALI
CRI	80+, 90+	CCT	3000K, 4000K

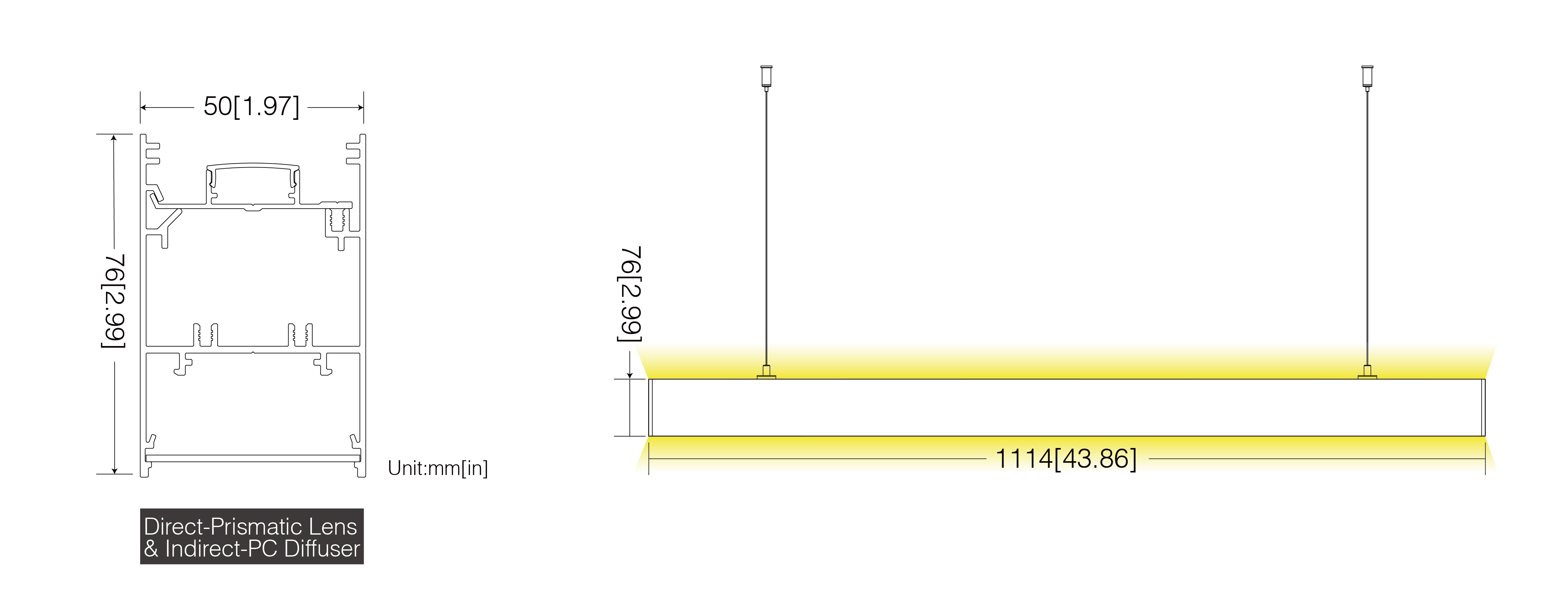

Color Quality	3-step MacAdam	Dimension	L1114 x W50 x H76mm
Installation	Pendant	Life Time L80B10	50,000hrs
