U557316- Cone Louver UGR<12

Slim Series is a linear LED lighting fixture with internal drivers that features by variouse Optic options. It can be built hundres option depens on the lighting environment requires based on various optical options .

ORDERING INFORMATION

LUMINAIRE

FINISH

LENS

LENGTH

COLOR
QUALITY

COLOR
TEMP

CRI

INSTALL
ACCS.

IP GRADE

DIMMING
OPTOINS

U557316

W-
White

B-
Black

S-
Silver

12- 12Deg.

24- 24Deg.

38- 38Deg.

50- 50Deg.

5050- 50×50Deg.

7070- 70×70Deg.

3570- 35×70Deg.

9090- 90×90Deg.

4-
1208mm

CM-
Customized

3-
3 Step
MacAdam
Ellipse

30- 3000K

40- 4000K

50- 5000K

65- 6500K

80-
80+ CRI

90-
90+ CRI

TDR-
Trimed
Recessed

22-
IP22

D1-
DALI

D2-
0-10V

D3-
On/off

Note:
1. Blueview’s standard is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

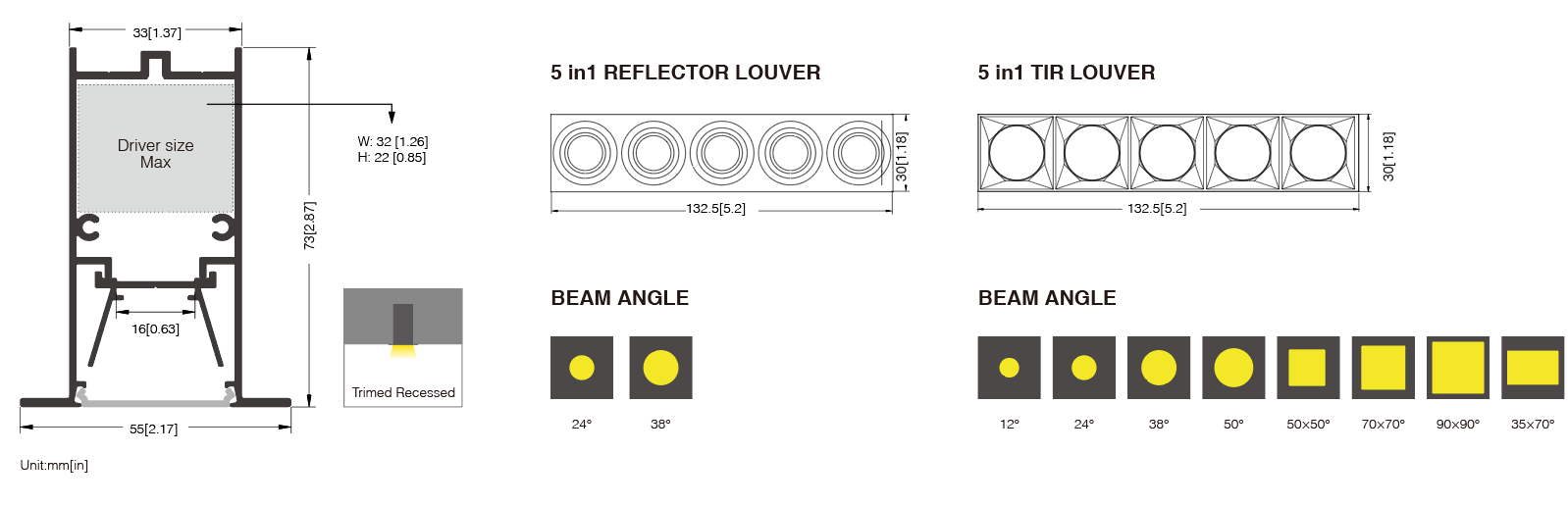

PROFILE ＆ OPTICS

FEATURES

Slim Series is a linear LED lighting fixture with internal drivers that features by variouse Optic options.
It can be built hundres option depens on the lighting environment requires based on various optical options .

The12° / 15° / 24°/ 30° / 38°/ 45° / 50° / 50x50° / 35x75° / 70×70° / 90×90° louver or TRI lens plus the

Wall washer louver are satisfying most of the application.
Fixture features 80+ or 95+ Ra LEDs. White color from 2700K to 6500K.
Dimmable driver available in Dali, 0/1-10V type, also controable options in DMX, PWM and 2.4G Static, Tunable white, RGBW solution available.
The fixture is designed in multiple installation in Sus-pendant , Ceiling Mounted.
Fixture lengths are available in 2ft,4ft,5ft and 8ft, and custom lengths are available in 19.6ft.

Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color available

Applications
Indoor - Office, Educational Instituions, Conference Rooms and many other workspaces.
