SSH RING- IN40

ORDERING INFORMATION

Note:
1. Blueview’s standard  is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

DIMENSION ＆ COLOR
————————————

FEATURES
———————

SSH Series is a Enginnering desing Acoustic Lighting, which is revolutionizing the way people experience work,worship, entertainment,

and their home through a suite of sound absorption and soundproofing solutions. It's providing functional illumination source as well as excellent sound management.

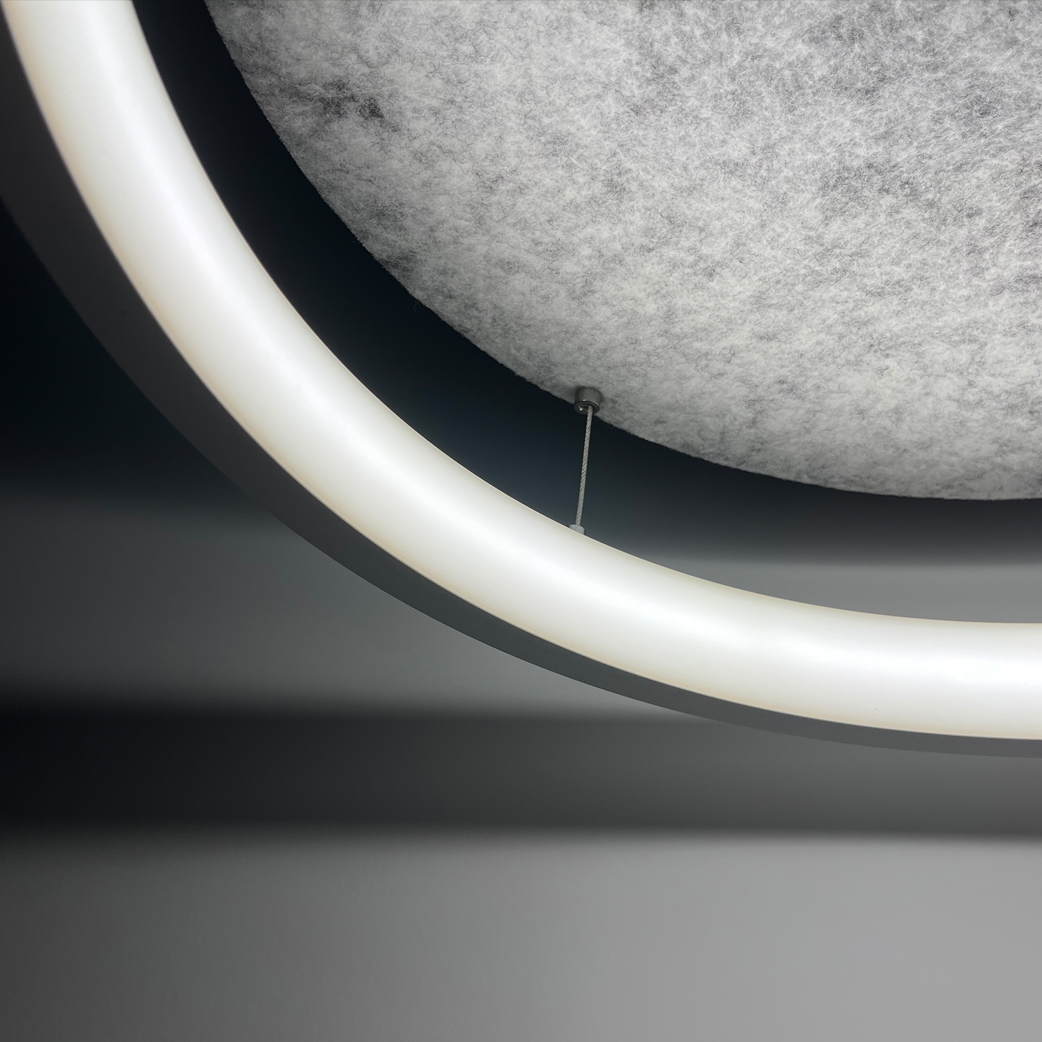

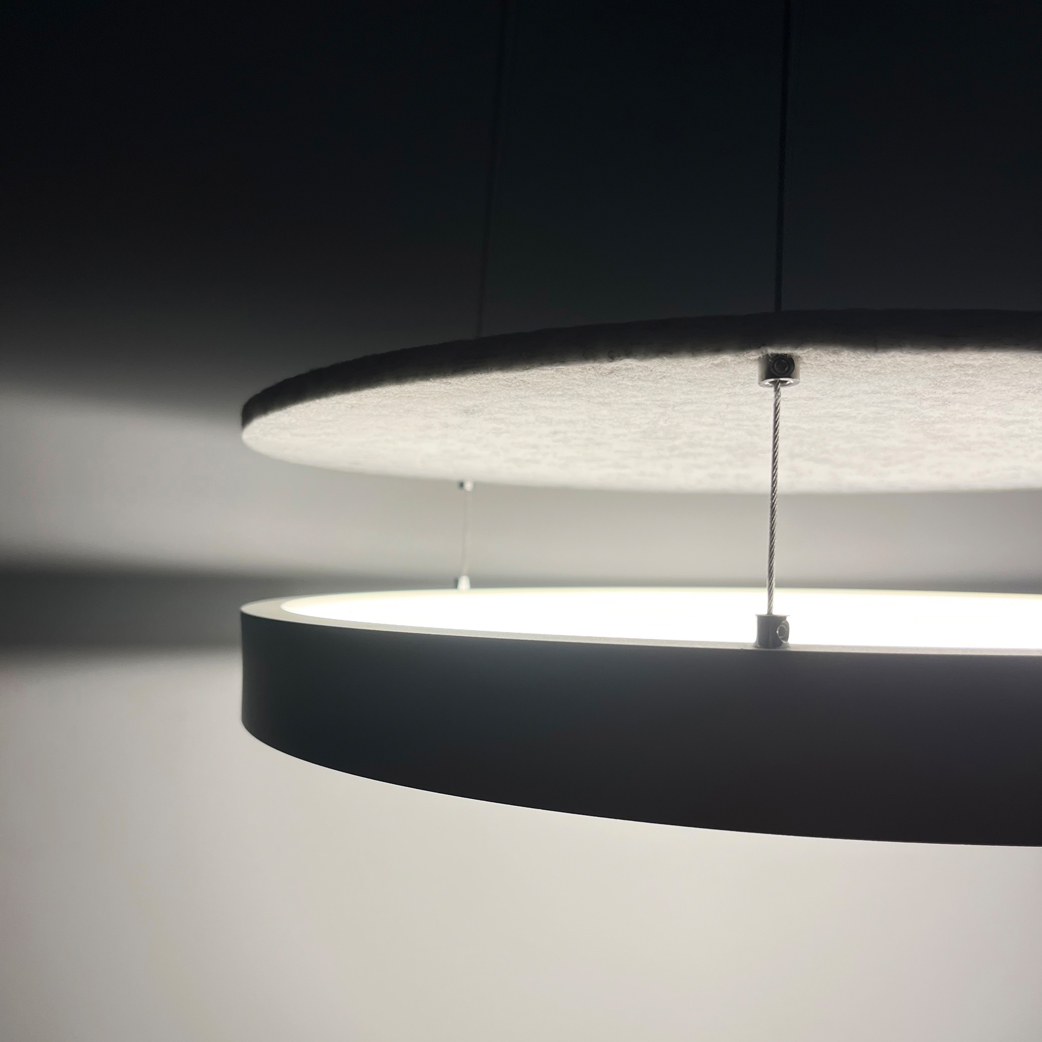

IN40 Ring light is built by Alu. extrusion fixture with Silicone lens. It’s creating smooth and comfort lighting.
The light sourced are Osram LED in 90+ or 95+ Ra avaiable.  Color temperature options from 2700K to 6500K, Dual white at WW+NW available.  DMX dimmable available.
Ring diameter available in Customized Multiple, Φ450mm, Φ600mm, Φ800mm, Φ1000mm, Φ1200mm, Φ1500mm.

● High Sound Absorption Performance in NRC = 0.7 panels Excellent illumination performance
● Up to CRI>95 & R9>90
● 100% recyclable and odorless material
● Class A Fire retardant
● Various customized design in 4x8ft/ 1.22x2.44m acoustic panels

RANGE OF APPLICATIONS
General or local lighting in Office, Educational Instituions, Healthcare, Theater & Museums, etc.


ELECTRIC GEAR
Constant current 0-10V / DALI / Non-dim dirvers, Setable white, Dual white / Dime2Warm,

DMX, PWM lighting solution available.

FILE DOWNLOAD
———————————
