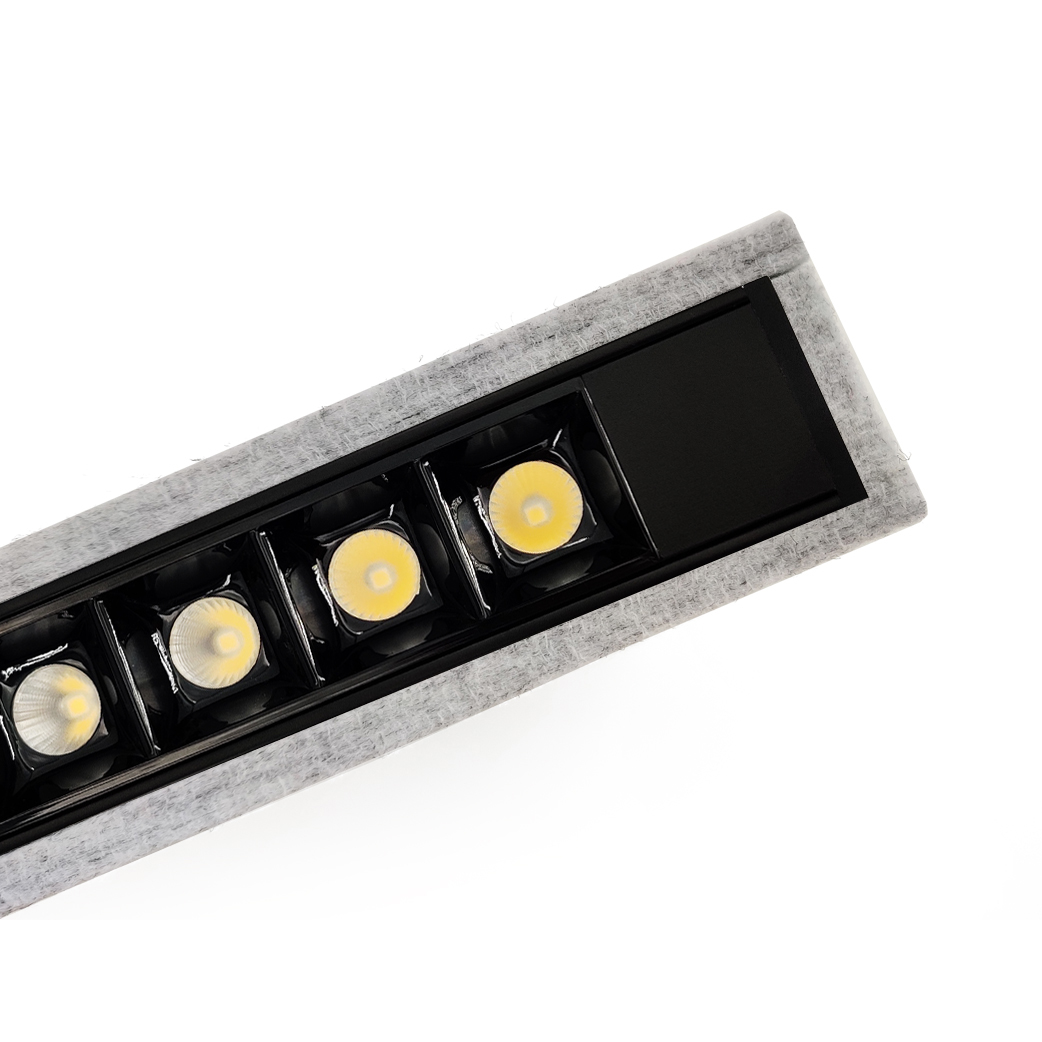

SSH Slim- T50S LENS

SSH-SLIM Series is a Enginnering desing Acoustic Lighting, which is revolutionizing the way people experience work, worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions. It’s providing functional illumination source as well as excellent sound management.



ORDERING INFORMATION




   LUMINAIRE    FINISH

   LENS

   LENGTH    COLOR
   QUALITY
   COLOR
   TEMP
   CRI    INSTALL
   ACCS.
   IP GRADE    DIMMING
   OPTOINS

   SSH Slim- T50S

   AC01- Cloudy Black
   AC02- Moon Grey
   AC03- Concrete Grey
   AC04- Silver Grey
   AC05- Indigo Blue
   AC06- Ocean Blue
   AC07- Navy Blue
   AC08- Stone Blue
   AC09- China Red
   AC10- Camel Brown
   etc.



   T50S-

 Round in
   Square
   50° TIR
   Lens in
   Square
   Louver



   4-
   1228mm

   Fixed
   length
   only

   3-
   3 Step
   MacAdam
   Ellipse

   30- 3000K



   40- 4000K



   50- 5000K



   65- 6500K

   80-
   80+ CRI



   90-
   90+ CRI

   P-
   Aircraft cable
   pendant

   22-
   IP22

   D1-
   DALI



   D2-
   0-10V



   D3-
   On/off



Note:
1. Blueview’s standard  is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

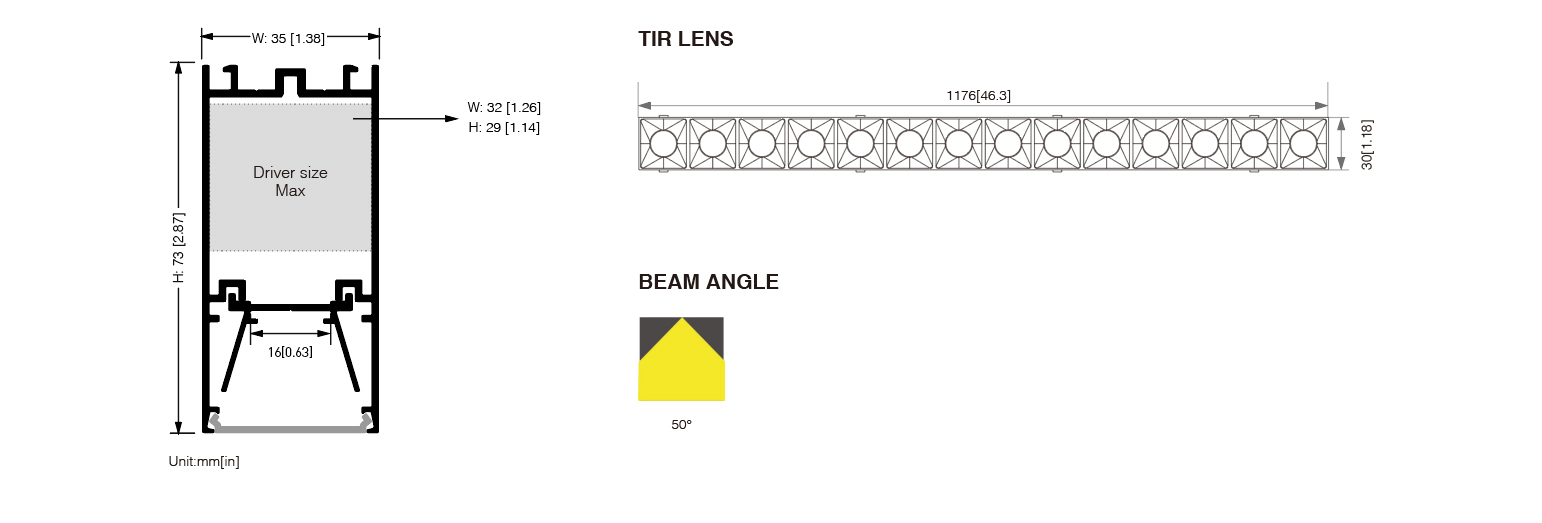

PROFILE & OPTICS





FEATURES

SSH-SLIM Series is a Enginnering desing Acoustic Lighting, which is revolutionizing the way people experience work,

worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions.
It's providing functional illumination source as well as excellent sound management.



● High Sound Absorption Performance in NRC = 0.7 panels Excellent illumination performance
● Up to CRI>95 & R9>90
● 100% recyclable and odorless material
● Class A Fire retardant
● Various customized design in 4x8ft/ 1.22x2.44m acoustic panels



RANGE OF APPLICATIONS
General or local lighting in Office, Educational Instituions, Healthcare, Theater & Museums, etc.



ELECTRIC GEAR
Constant current 0-10V / DALI / Non-dim dirvers, Setable white, Dual white / Dime2Warm,

DMX, PWM lighting solution available.





FILE DOWNLOAD

SSH Slim- T50S LENS Specifications
SSH Series Pendant Installation
Aocustic Lighting Design Guidelines
