U3572- SILICONE / PC DIFFUSER

Slim Series P/M is a linear LED lighting ﬁxture with internal drivers that features by variouse Optic options. It can be built hundres option depens on the lighting environment requires based on various optical options . The 15° / 30° / 45° / 50° / 50x50° / 35x75° louver or TRI lens plus the Wall washer louver are satisfying most of the application.

ORDERING INFORMATION

LUMINAIRE

FINISH

LENS

LENGTH

COLOR
QUALITY

COLOR
TEMP

CRI

INSTALL
ACCS.

IP GRADE

DIMMING
OPTOINS

U357228

W-
White

B-
Black

S-
Silver

S-
Silicone

D-

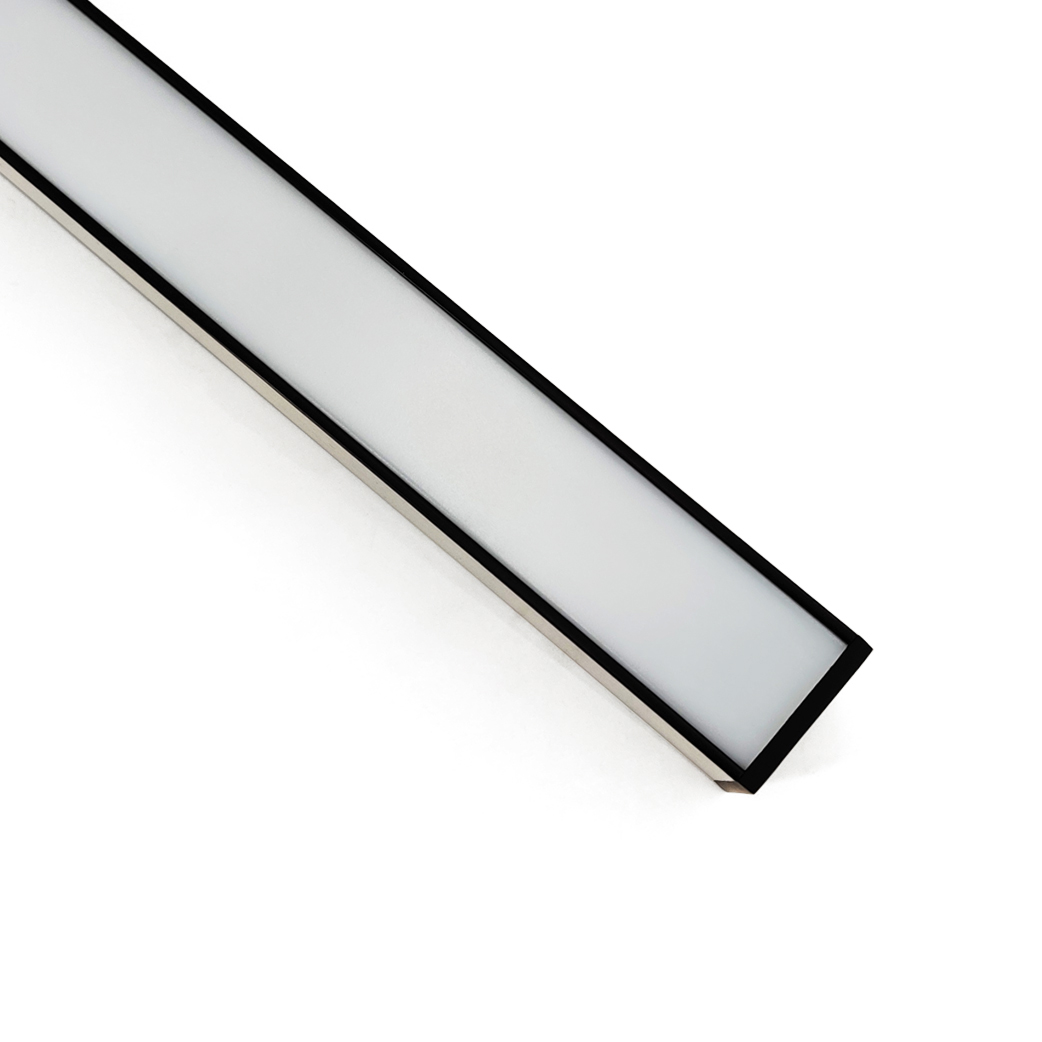

Diffuser

2-
608mm

4-
1208mm

5-
1508mm

8-
2408mm

3-
3 Step
MacAdam
Ellipse

5-
5 Step
MacAdam
Ellipse

27- 2700K

30- 3000K

35- 3500K

40- 4000K

50- 5000K

60- 6000K

65- 6500K

80-
80+ CRI

90-
90+ CRI

95-
95+ CRI

P-
Aircraft cable
pendant

M-

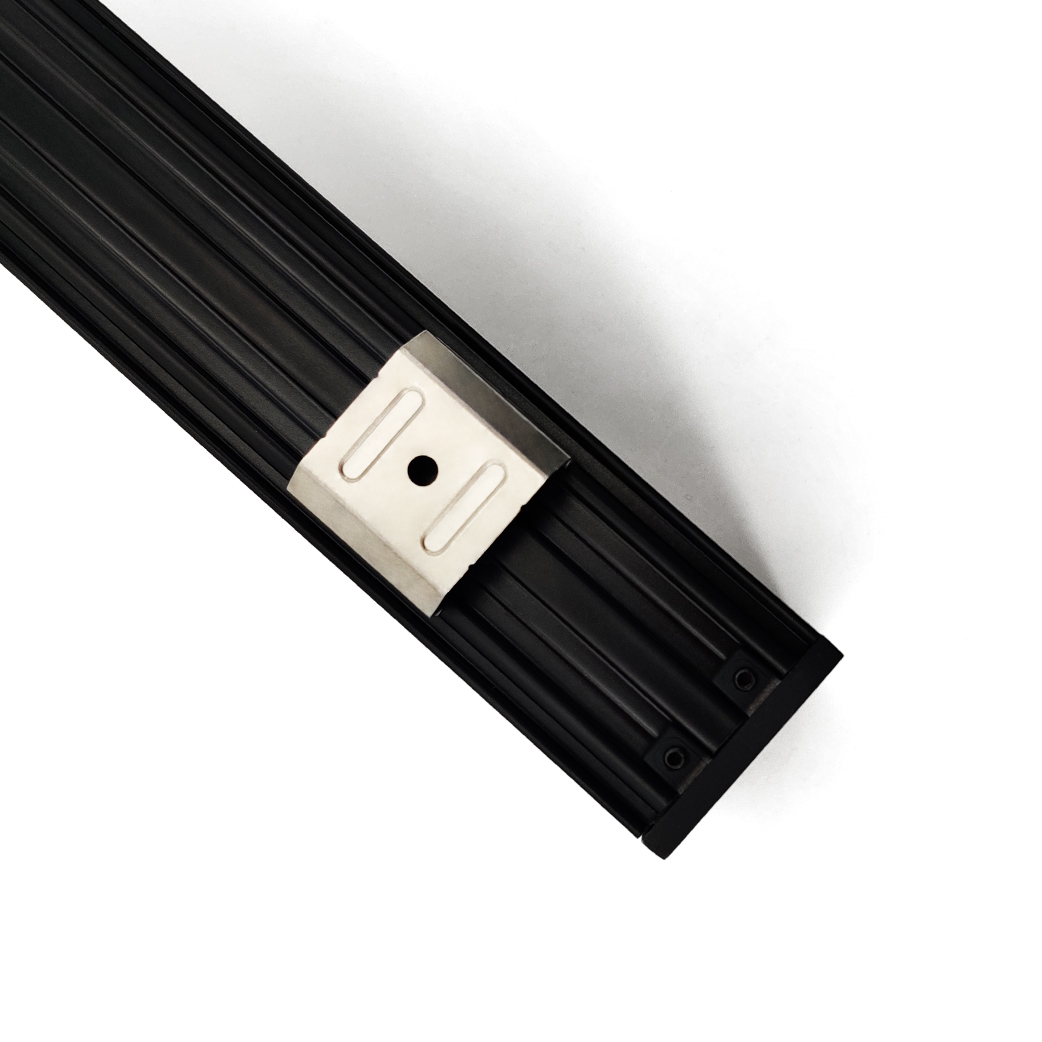

Ceiling
Mounted

22-
IP22

D1-
DALI

D2-
0-10V

D3-
On/off

Note:
1. Blueview’s standard is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

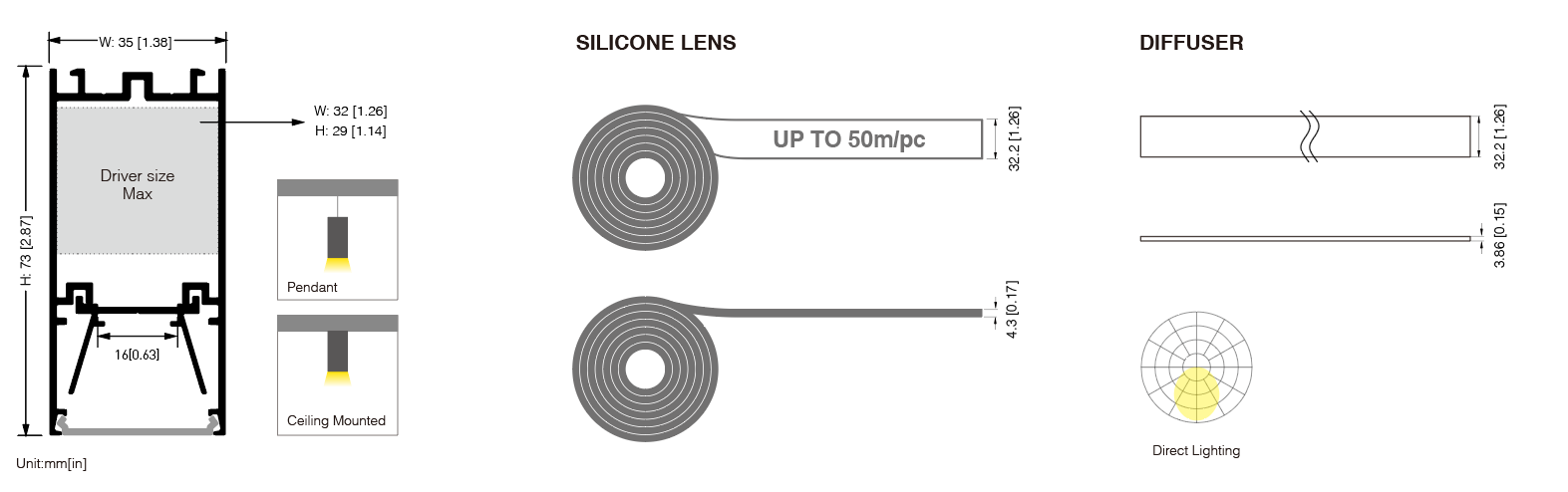

PROFILE AND OPTICS

FEATURES

Slim Series P/M is a linear LED lighting fixture with internal drivers that features by variouse Optic options.
It can be built hundres option depens on the lighting environment requires based on various optical options .

The 15° / 30° / 45° / 50° / 50x50° / 35x75° louver or TRI lens plus the Wall washer louver are satisfying most of the application.
Fixture features 80+ or 95+ Ra LEDs. White color from 2700K to 6500K.
Dimmable driver available in Dali, 0/1-10V type, also controable options in DMX, PWM and 2.4G Static, Tunable white, RGBW solution available.

The fixture is designed in multiple installation in Sus-pendant , Ceiling Mounted. Fixture lengths are available in 2ft,4ft,5ft and 8ft,

and custom lengths are available in 19.6ft.

Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color available

Applications
Indoor - Office, Educational Instituions, Conference Rooms and many other workspaces.
