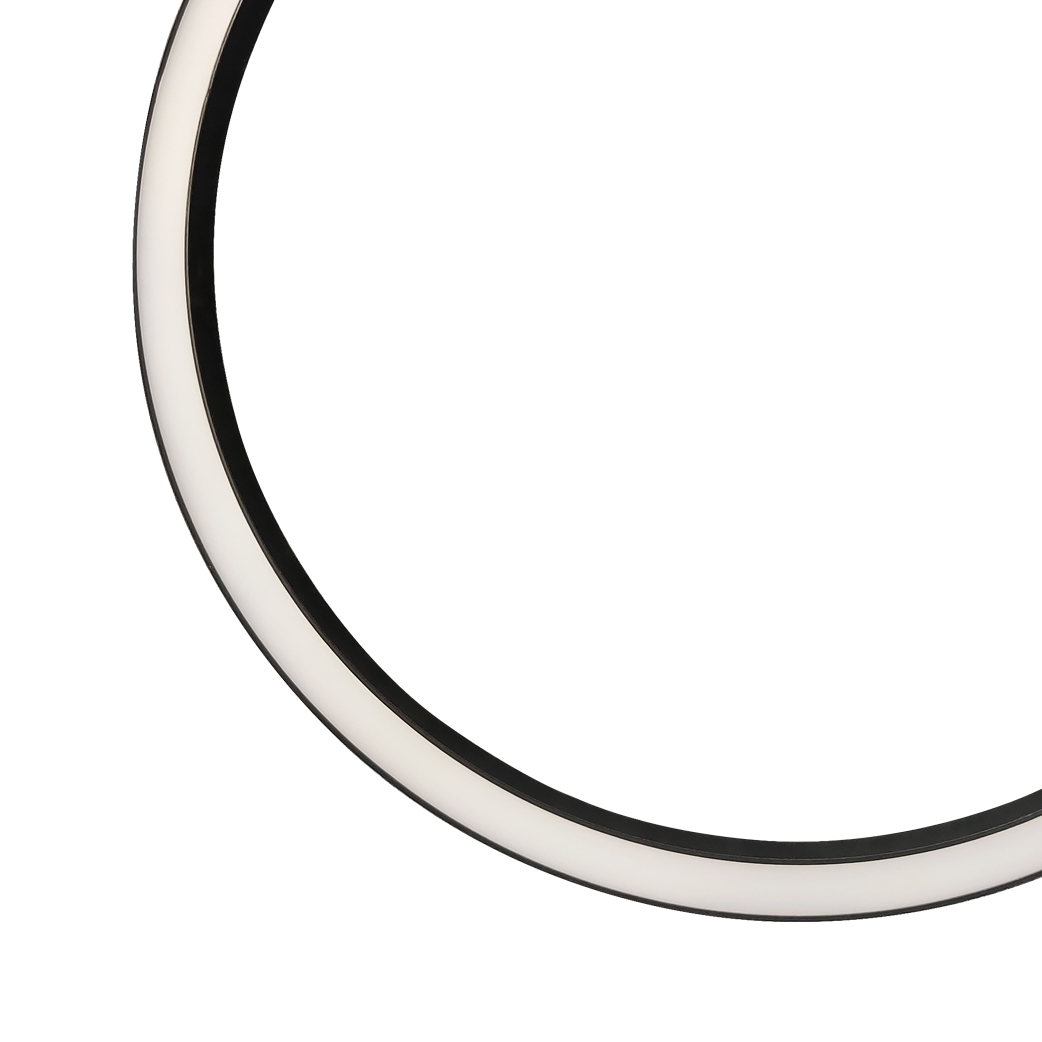

O30D RING LIGHT

O30D Ring light is built by Alu. extrusion fixture with Silicone lens. It’s creating smooth and comfort lighting without spot.

ORDERING INFORMATION

LUMINAIRE

FINISH

LENS

Dimension (D)

COLOR
QUALITY

COLOR
TEMP

CRI

INSTALL
ACCS.

IP GRADE

DIMMING
OPTOINS

O30D

W-
White

B-
Black

S-
Silver

S-
Silicone

6- φ600mm

9- φ900mm

12- φ1200mm

3-
3 Step
MacAdam
Ellipse

27- 2700K

30- 3000K

35- 3500K

40- 4000K

50- 5000K

60- 6000K

65- 6500K

80-
80+ CRI

90-
90+ CRI

95-
95+ CRI

P-
Pendant

22-
IP22

D1-
DALI

D2-
0-10V

D3-
On/off

1.Blueview’s standard is 3-Step MacAdam
2.The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

LUMINAIRE DIMENSION

FEATURES

O30D Ring light is built by Alu. extrusion fixture with Silicone lens. It’s creating smooth and comfort lighting without spot. The light sourced are available up to 95+ Ra. Color temperature options from 2700K to 6500K, Dual white at WW+NW available. DMX dimmable available.Ring diameter available in Φ600mm, Φ 900mm, Φ1200mm and customized size.

Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color available

Applications

Indoor - Resting Zone, Receiption, etc.
