U514128- PC
ORDERING INFORMATION
|
|
|||||||||
| LUMINAIRE | FINISH |
LENS |
LENGTH | COLOR QUALITY |
COLOR TEMP |
CRI | INSTALL ACCS. |
IP GRADE | DIMMING OPTOINS |
|
U514128 |
W-
B-
S-
|
P- D- |
2-
4-
5-
8- |
3-
5- |
27- 2700K 30- 3000K 35- 3500K 40- 4000K 50- 5000K 60- 6000K 65- 6500K
|
80-
90-
95-
|
P-
M- |
22- |
D1-
D2-
D3-
|
Note:
1. Blueview’s standard is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

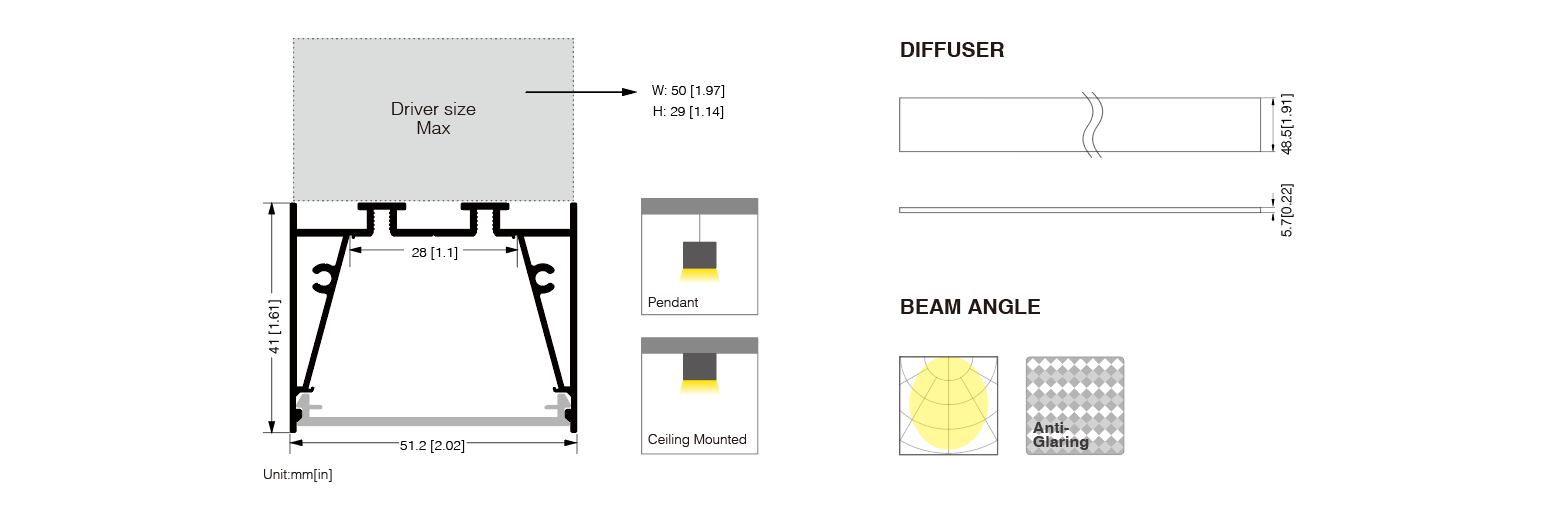

PROFILE ＆ OPTICS
FEATURES

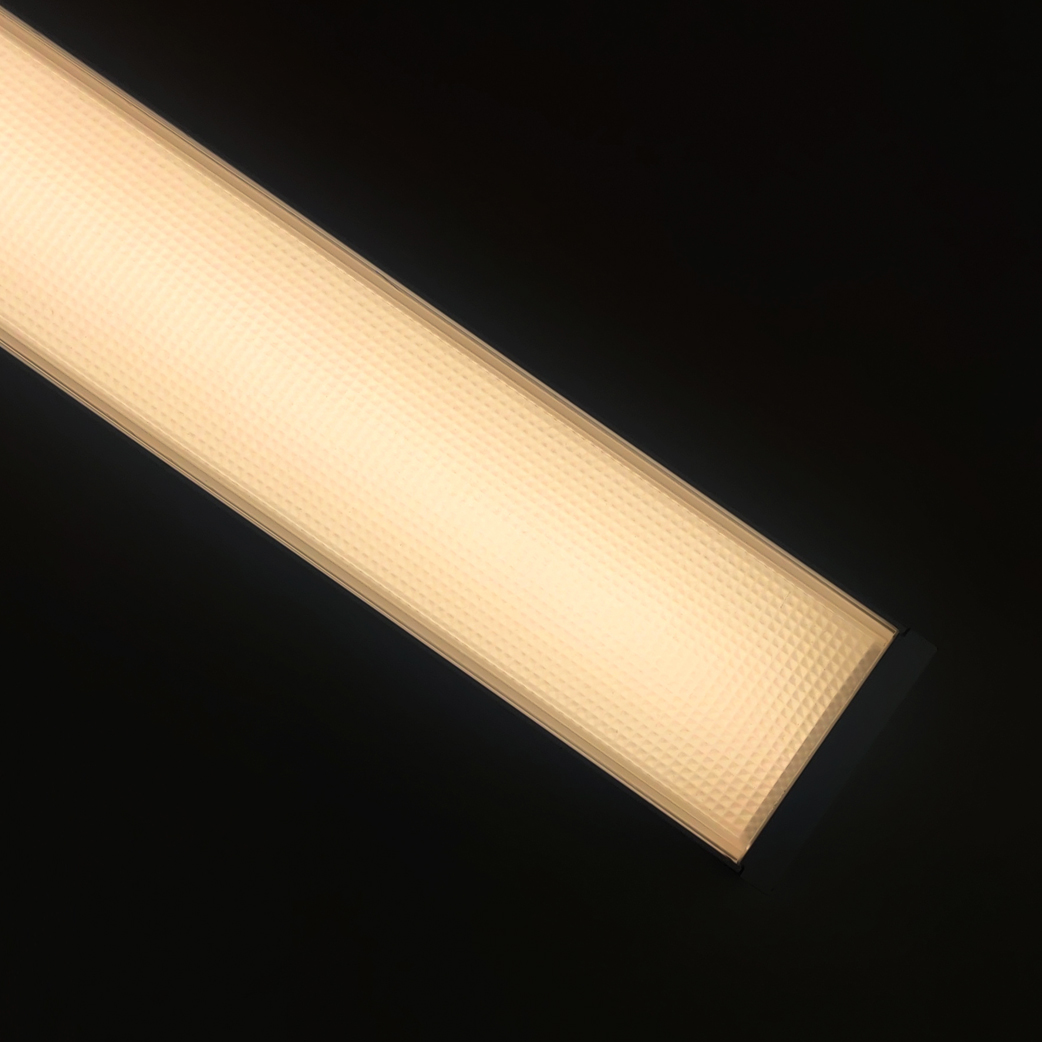

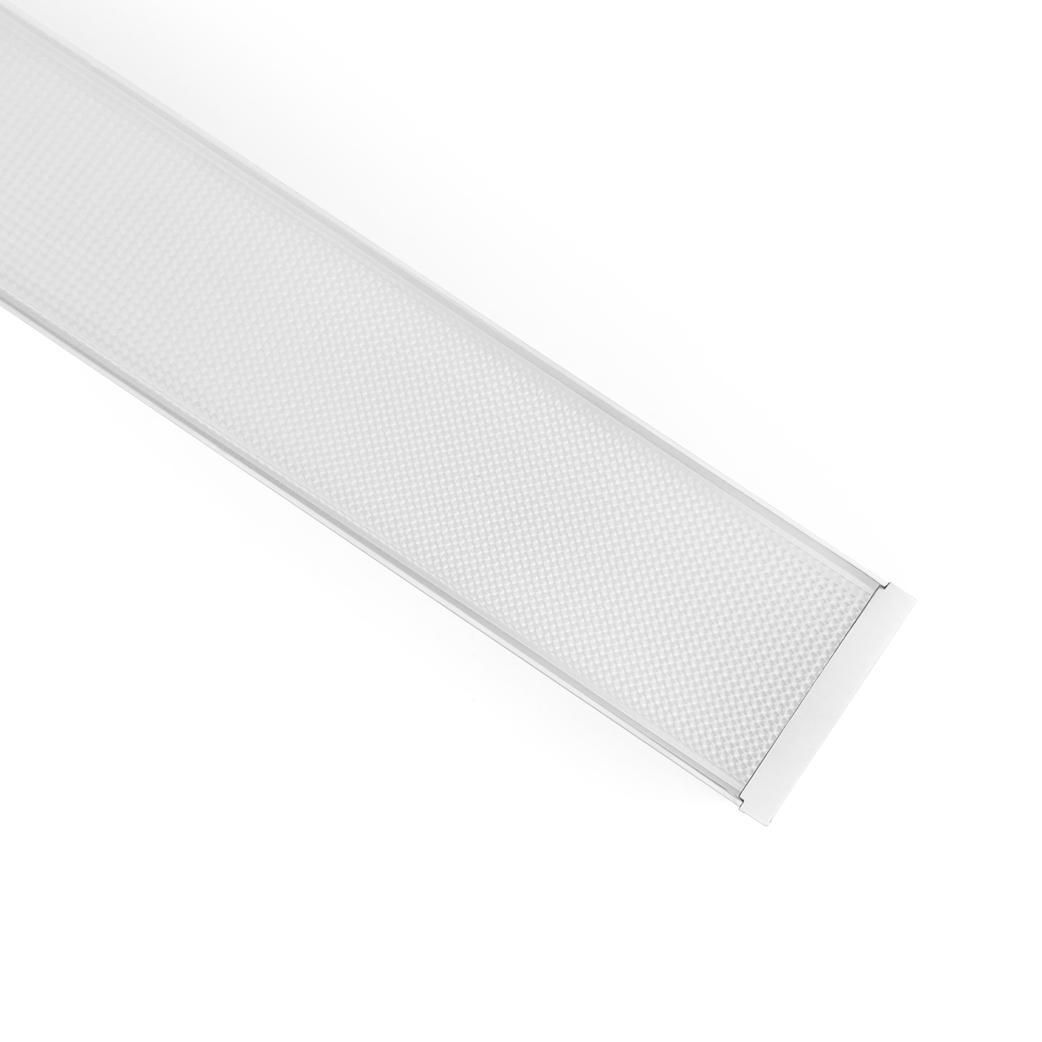

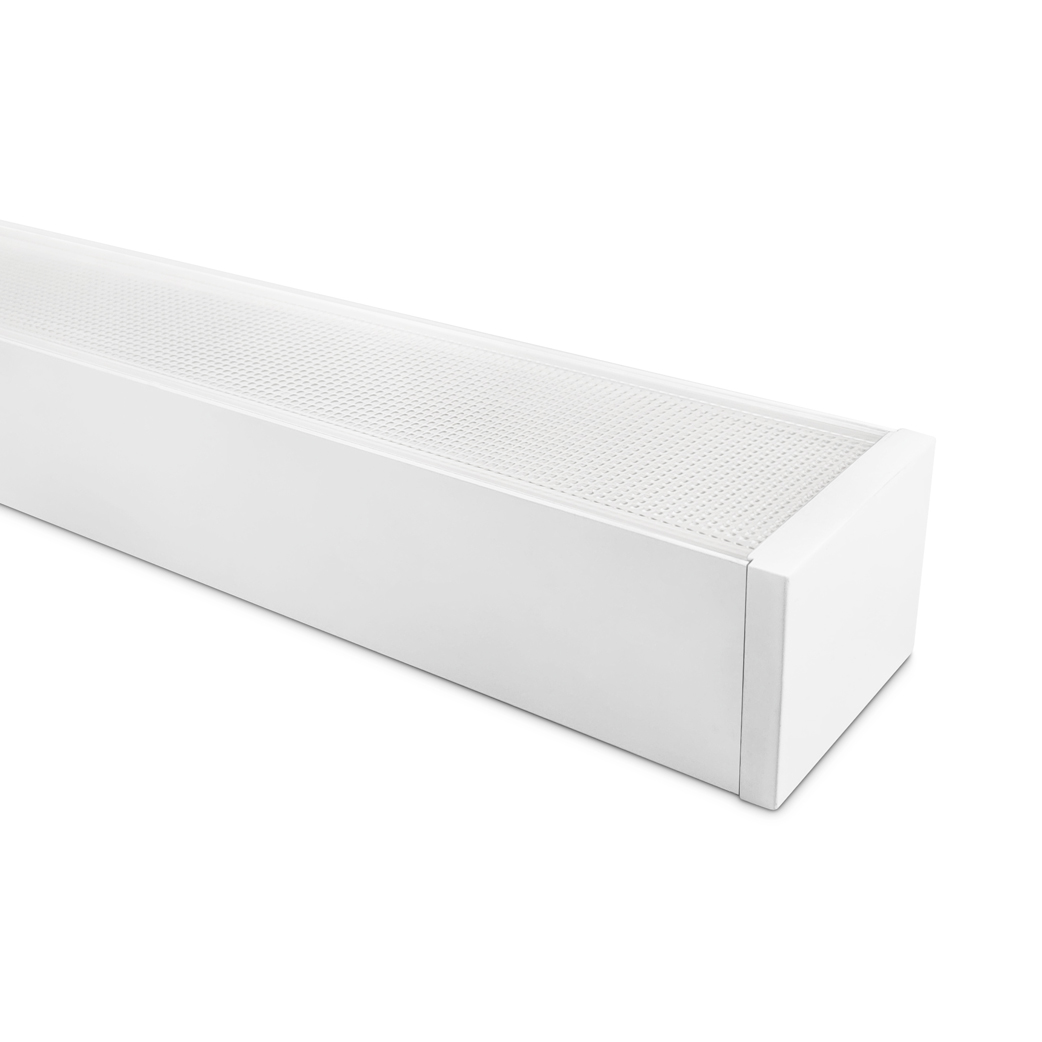

U514128P / M / W is a linear LED lighting fixture that features direct lighting with External Driver.
Low lighting glaring in tested UGR<16 performance.
Fixture features 80+ or 95+ Ra LEDs. White color from 2700K to 6500K.
Dimmable driver available in Dali, 0/1-10V, Triac type.
Luminaries lengths are available in 2ft,4ft,5ft and 8ft, and custom lengths are available.
Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color available
Applications
Indoor - Commercial Residential , Office, Educational Instituions, Conference Rooms and many other workspaces.
FILE DOWNLOAD
| ZOLI U514128-PC Specifications |
| ZOLI U514128 Pendant Insatllation |
| ZOLI U514128 Ceiling Insatllation |
