O600610P- 360DEG. Diffuser

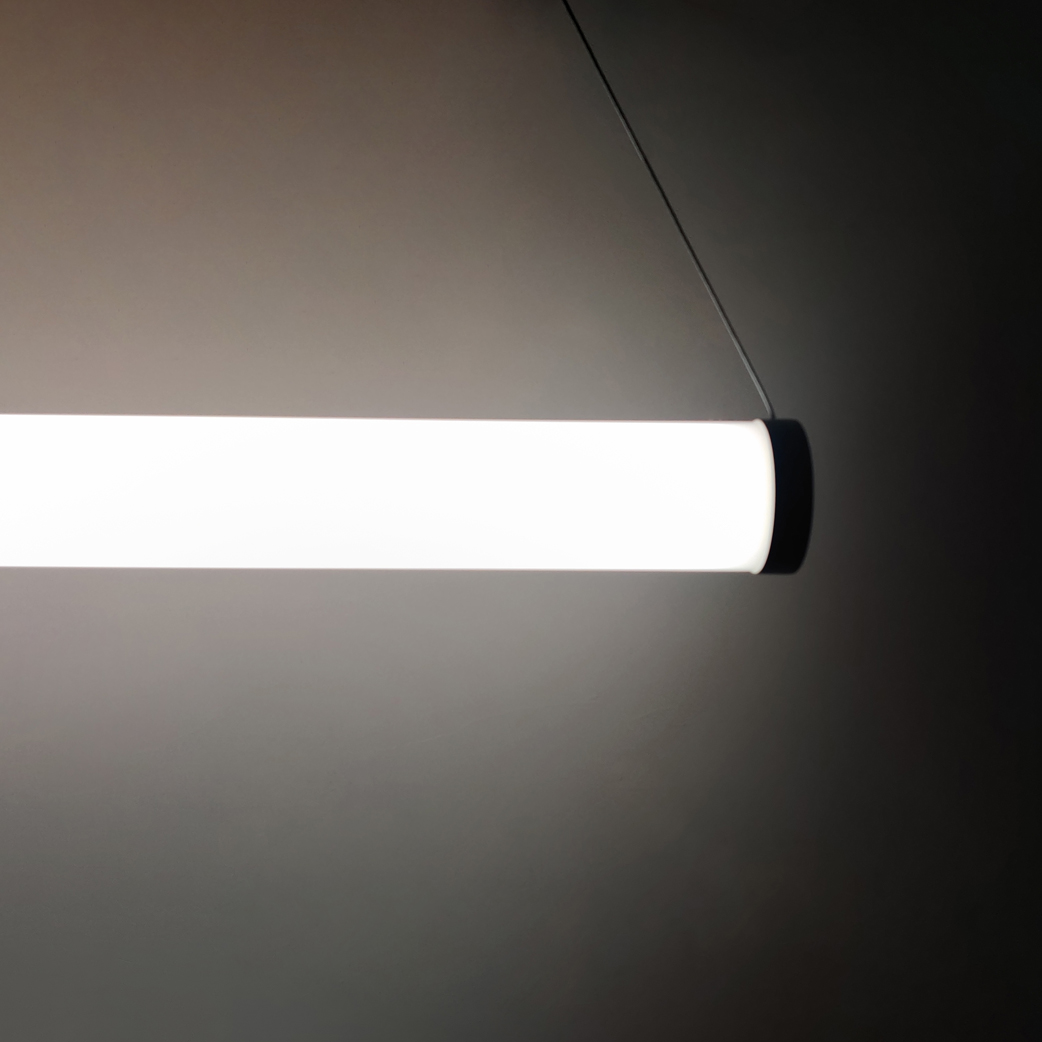

O600610P is linear LED lighting fixture that features a 360° lighting. It’s mostly simulating the natural lighting enviroment.

ORDERING INFORMATION

LUMINAIRE

FINISH

LENS

LENGTH

COLOR
QUALITY

COLOR
TEMP

CRI

INSTALL
ACCS.

IP GRADE

DIMMING
OPTOINS

O600610P

W-
White

B-
Black

S-
Silver

D-
Diffuser

2-
630mm

4-
1230mm

5-
1530mm

6-
1830mm

3-
3 Step
MacAdam
Ellipse

5-
5-Step
MacAdam
Ellips

27- 2700K

30- 3000K

35- 3500K

40- 4000K

50- 5000K

60- 6000K

65- 6500K

80-
80+ CRI

90-
90+ CRI

95-
95+ CRI

P-
Vertical
Pendant

HP-
Horizontal
Pendant

22-
IP22

D1-
DALI

D2-
0-10V

D3-
On/off

Note:
1. Blueview’s standard is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

FEATURES

O600610P is linear LED lighting fixture that features a 360° lighting. It’s mostly simulating the natural lighting enviroment.
Fixture features 80+ or 95+ Ra LEDs. White color from 2700K to 6500K. Dimmable driver available in Dali, 0/1-10V, Triac type. Fixture lengths are available in 2ft,4ft,5ft and 8ft, and custom lengths are available in 19.6ft.

Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color availableg

Applications
Indoor - Office, Educational Instituions, Conference Rooms and many other workspaces.
