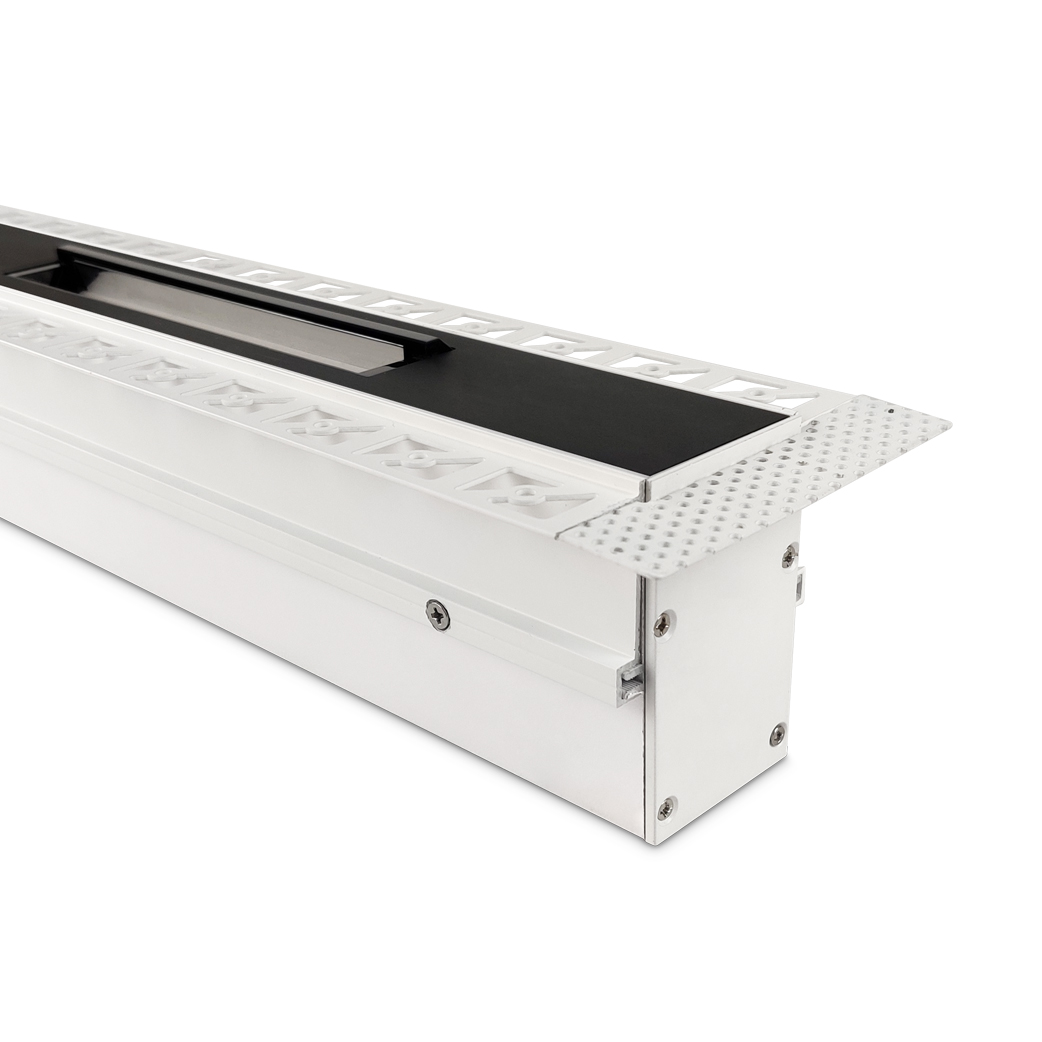

U1008533 TRIMLESS RECESSED- WALL WASHER

LUZ TLR is a linear LED lighting fixture that features by variouse Optic options.It can be built hundres option depends on the lighting environment requires based on various optical options .

ORDERING INFORMATION

LUMINAIRE

FINISH

LENS

LENGTH

COLOR
QUALITY

COLOR
TEMP

CRI

INSTALL
ACCS.

IP GRADE

DIMMING
OPTOINS

U1008533

W-
White

B-
Black

S-
Silver

WW-
Wall
Washer Kit

4-
1247mm

CM-
Customized

3-
3 Step
MacAdam
Ellipse

30- 3000K

40- 4000K

50- 5000K

65- 6500K

80-
80+ CRI

90-
90+ CRI

TLR-
Trim-Less
Recessed

22-
IP22

D1-
DALI

D2-
0-10V

D3-
On/off

Note:
1. Blueview’s standard is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

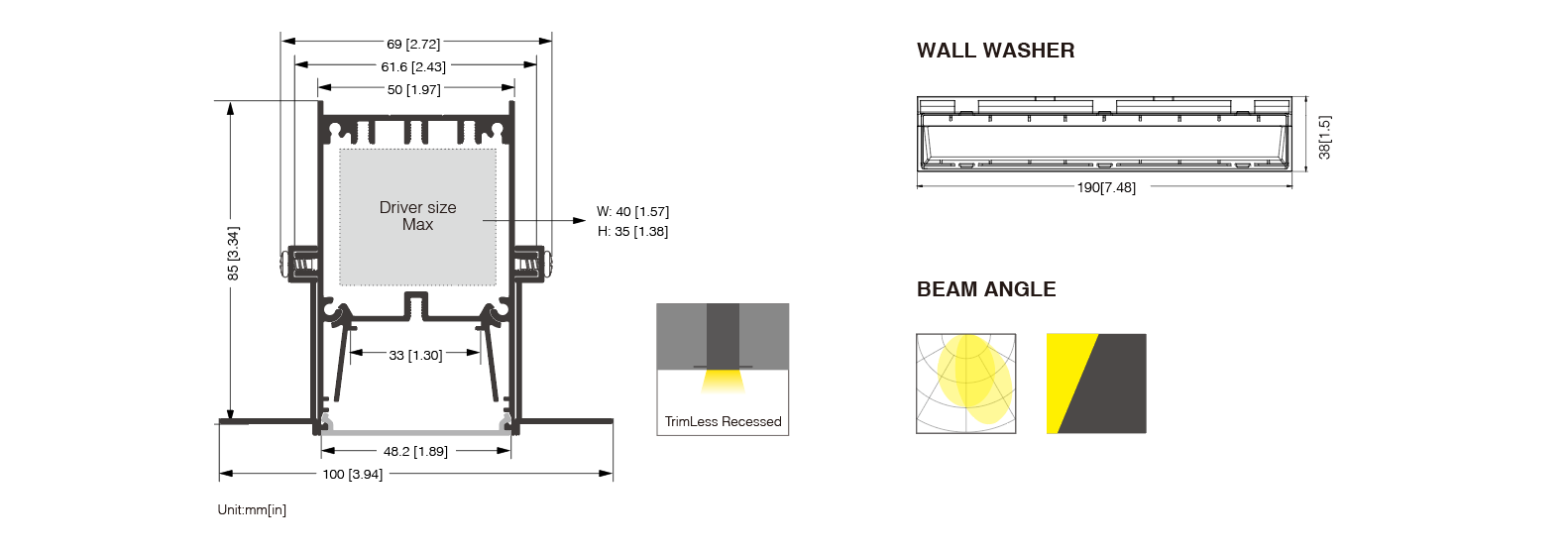

PROFILE ＆ OPTICS

FEATURES

LUZ TLR is a linear LED lighting fixture that features by variouse Optic options. It can be built hundres option depends on the lighting environment requires based on various optical options .
The 15° / 30° / 45° louver plus the Wall washer louver are satisfying most of the application.
Fixture features 80+, 90+ or 95+ Ra LEDs. White color from 2700K to 6500K.
Dimmable driver available in Dali, 0/1-10V type, also controable options in DMX, PWM and 2.4G Static, Tunable white, RGBW solution available.
The fixture is designed in multiple installation in Sus-pendant , Wall / Ceiling Mounted , Trim-less or Trimed Recessed.
Fixture lengths are available in 2ft,4ft,5ft and 8ft, and custom lengths are available in 19.6ft.

Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color available

Applications
Indoor - Commercial, Residential , Office, Educational Instituions, Conference Rooms and many other workspace
