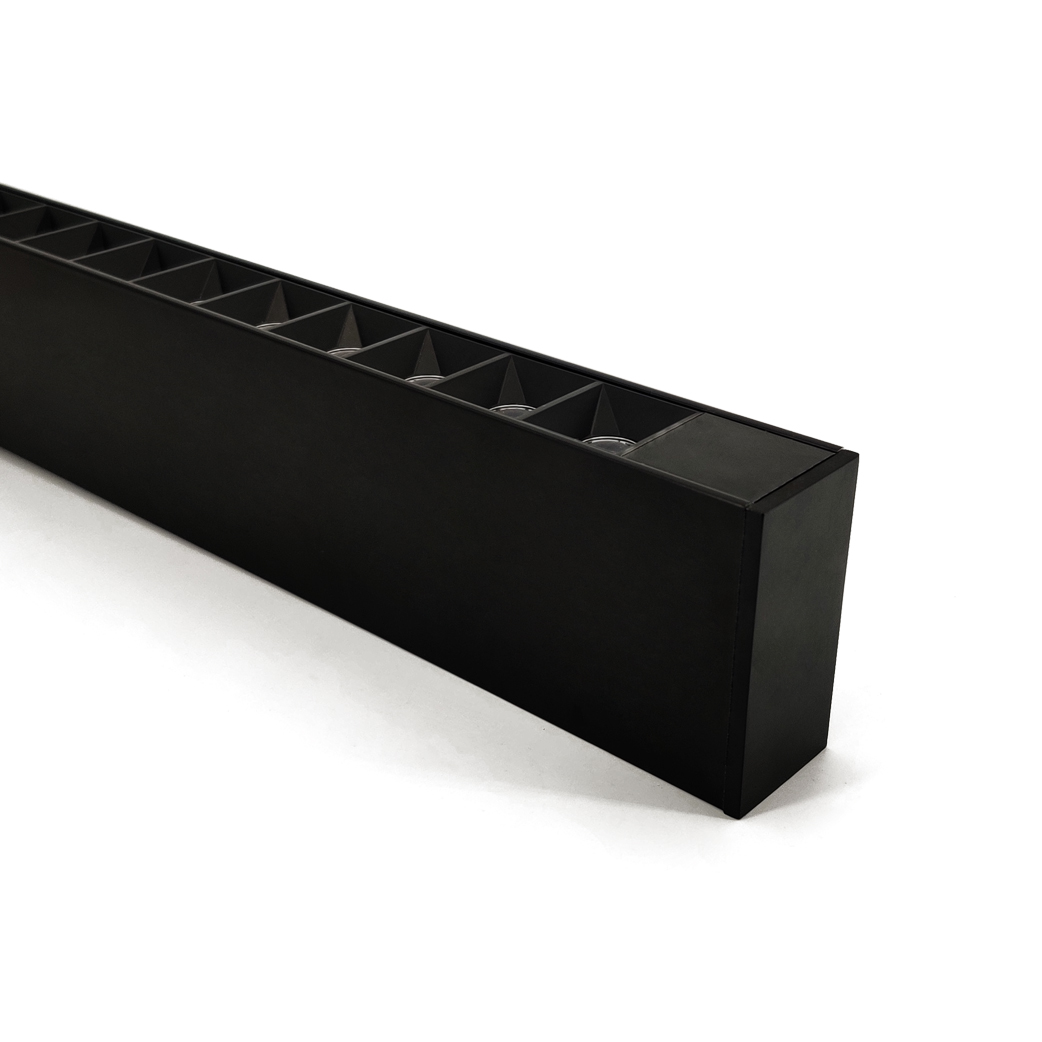

U357228- Diamond 50° TIR LENS

Slim Series P/M is a linear LED lighting fixture with internal drivers that features by variouse Optic options. It can be built hundres option depens on the lighting environment requires based on various optical options .



ORDERING INFORMATION




   LUMINAIRE    FINISH

   LENS

   LENGTH    COLOR
   QUALITY
   COLOR
   TEMP
   CRI    INSTALL
   ACCS.
   IP GRADE    DIMMING
   OPTOINS

   U357228

   W-
   White



   B-
   Black



   S-
   Silver





   T50D-

 Round in
   Diamond
   50° TIR
   Lens in
   Diamond
   Louver

   4-
   1208mm



   8-
   2408mm
   Fixed
   length
   only

   3-
   3 Step
   MacAdam
   Ellipse





   30- 3000K



   40- 4000K



   50- 5000K



   65- 6500K





   80-
   80+ CRI



   90-
   90+ CRI





   P-
   Aircraft cable
   pendant



   M-
   Ceiling
   Mounted

   22-
   IP22

   D1-
   DALI



   D2-
   0-10V



   D3-
   On/off



Note:
1. Blueview’s standard  is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

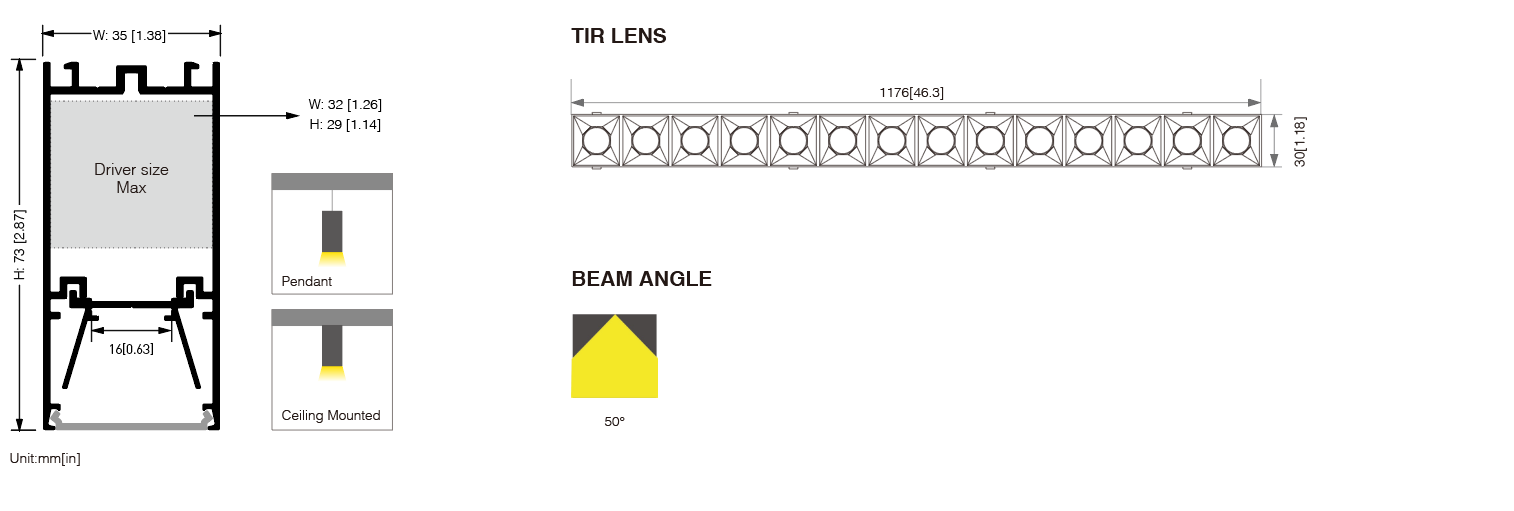

PROFILE & OPTICS





FEATURES
Slim Series P/M is a linear LED lighting fixture with internal drivers that features by variouse Optic options.

It can be built hundres option depens on the lighting environment requires based on various optical options .

The 15° / 30° / 45° / 50° / 50x50° / 35x75° louver or TRI lens plus the Wall washer louver are satisfying most of the application.
Fixture features 80+ or 95+ Ra LEDs. White color from 2700K to 6500K.
Dimmable driver available in Dali, 0/1-10V type, also controable options in DMX, PWM and 2.4G Static, Tunable white, RGBW solution available.

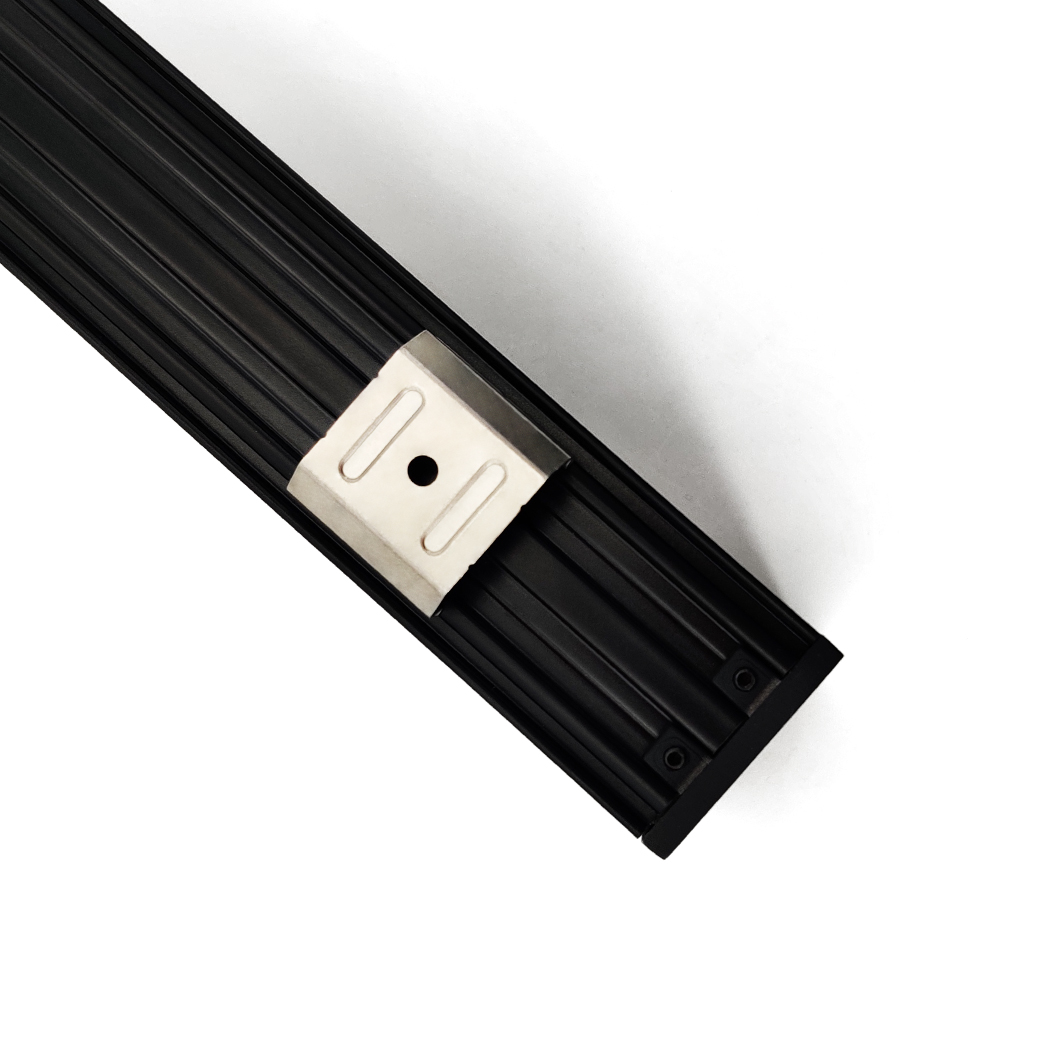

The fixture is designed in multiple installation in Sus-pendant , Ceiling Mounted.
Fixture lengths are available in 2ft,4ft,5ft and 8ft, and custom lengths are available in 19.6ft.



Finish
Aluminum clear matt anodized
White / Black powder coating
Customized RAL color available



Applications
Indoor - Office, Educational Instituions, Conference Rooms and many other workspaces.
