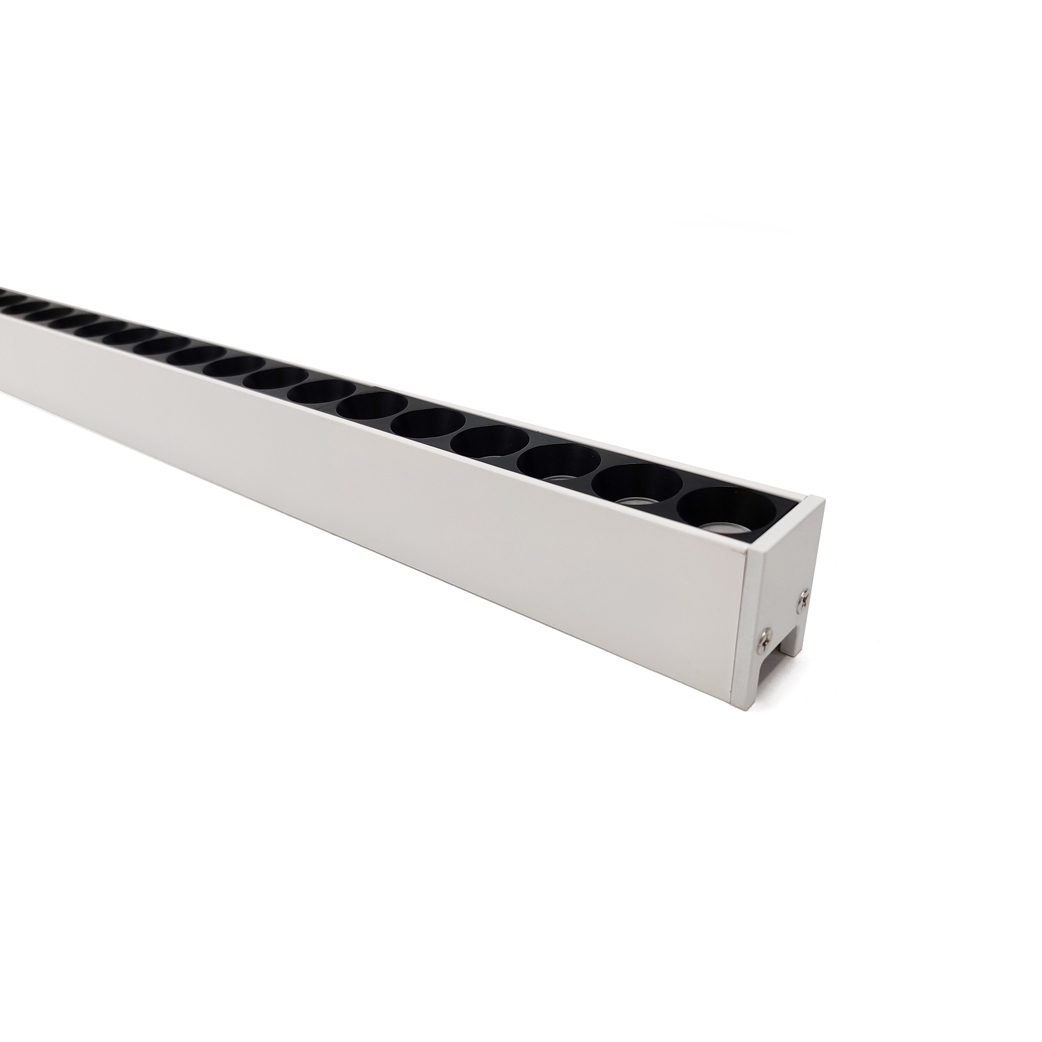

BVG-L Interior Louver Type

Blueview's BVG Grazer Linear Lighting has Interior Grazer TIR lens type — BVG-T, Interior Extruded lens type — BVG-E,Interior Louver type — BVG-L & outdoor IP65 type — BVG-O. BVG can be installed by ceiling mounted bracket or Swivel bracket in -85° to 85° adjustable to satisfy different applications.

ORDERING INFORMATION

LUMINAIRE

FINISH

BEAM
ANGLE

POWER

COLOR
QUALITY

COLOR
TEMP

CRI

LENGTH
(mm)

IP GRADE

DIMMING
OPTOINS

BVG-L

W-
White

B-
Black

S-
Silver

25- Spot 25°

50- Flood 50°

15W/m

3-
3 Step
MacAdam
Ellipse

5-
5 Step
MacAdam
Ellipse

27-2700K

30-3000K

35-3500K

40-4000K

50-5000K

60-6000K

65-6500K

80-
80+ CRI

90-
90+ CRI

12-
1207mm

XX-
Custom length
120mm increments

22-
IP22

D1-
On/off

Note:
1.Outdoor Grazer’s length is limited in 1.2m because the tempered glass’s limited.
2.The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips. For more options, pls. check with your executive sales.
3.Blueview doesn’t offer drivers, it’s working with all different Constant Voltage controllers.

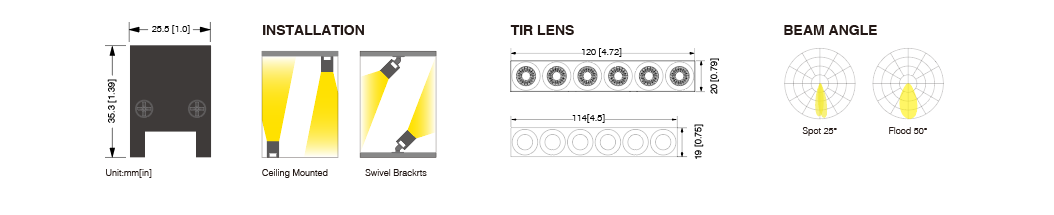

PROFILE ＆ OPTICS

FEATURES

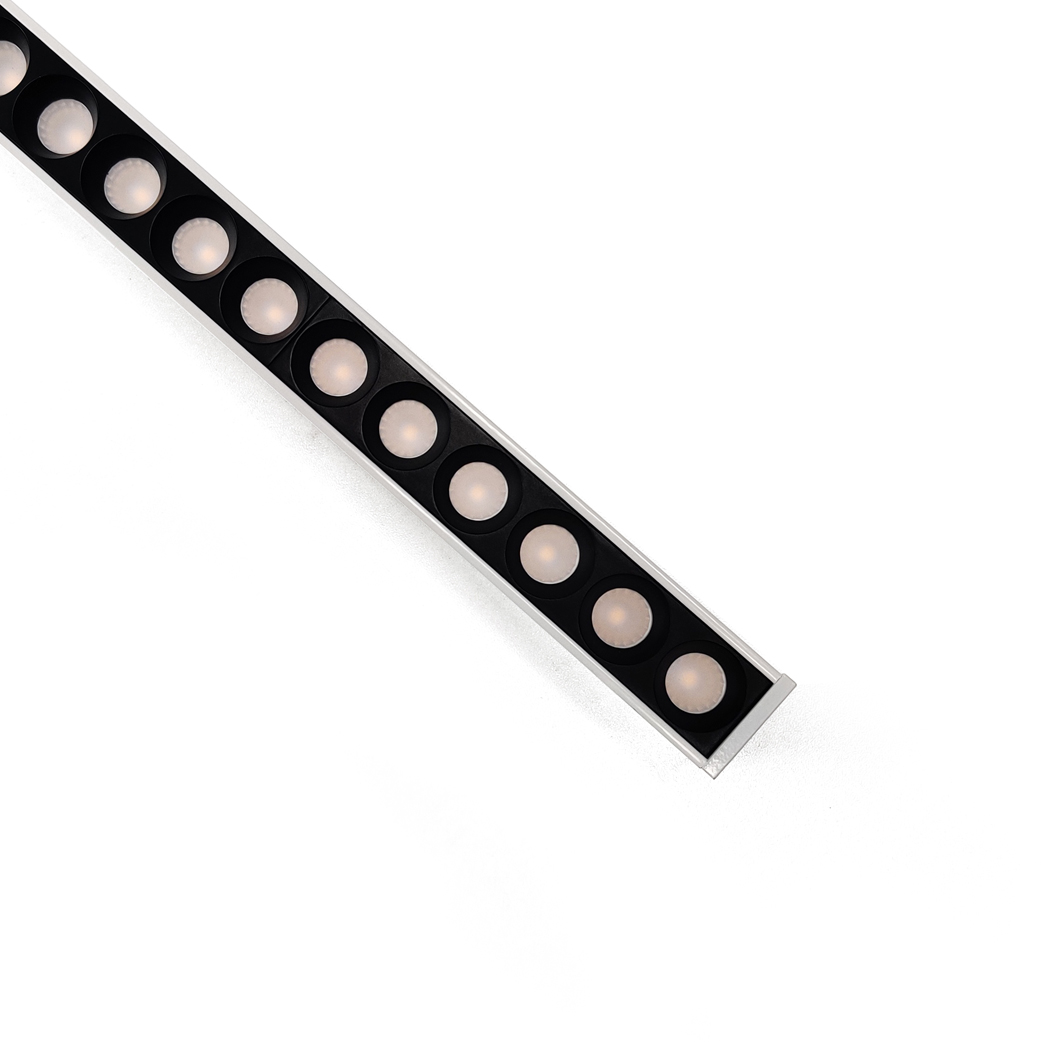

● BVG-L is engineering design with High reﬂection reﬂectors and Louver optical system, it’s offering spot 30° and ﬂood 50° in Black, Silver and White louver options.
● BVG-L delivers high-performance light evenly to graze the wall continuously in DC24V.

● BVG-L is offer UGR<10 to 12, it can lower down the glaring for comfort lighting enviroment.

● BVG can be installed by ceiling mounted bracket or Swivel bracket in -85° to 85° adjustable to satisfy different applications.
